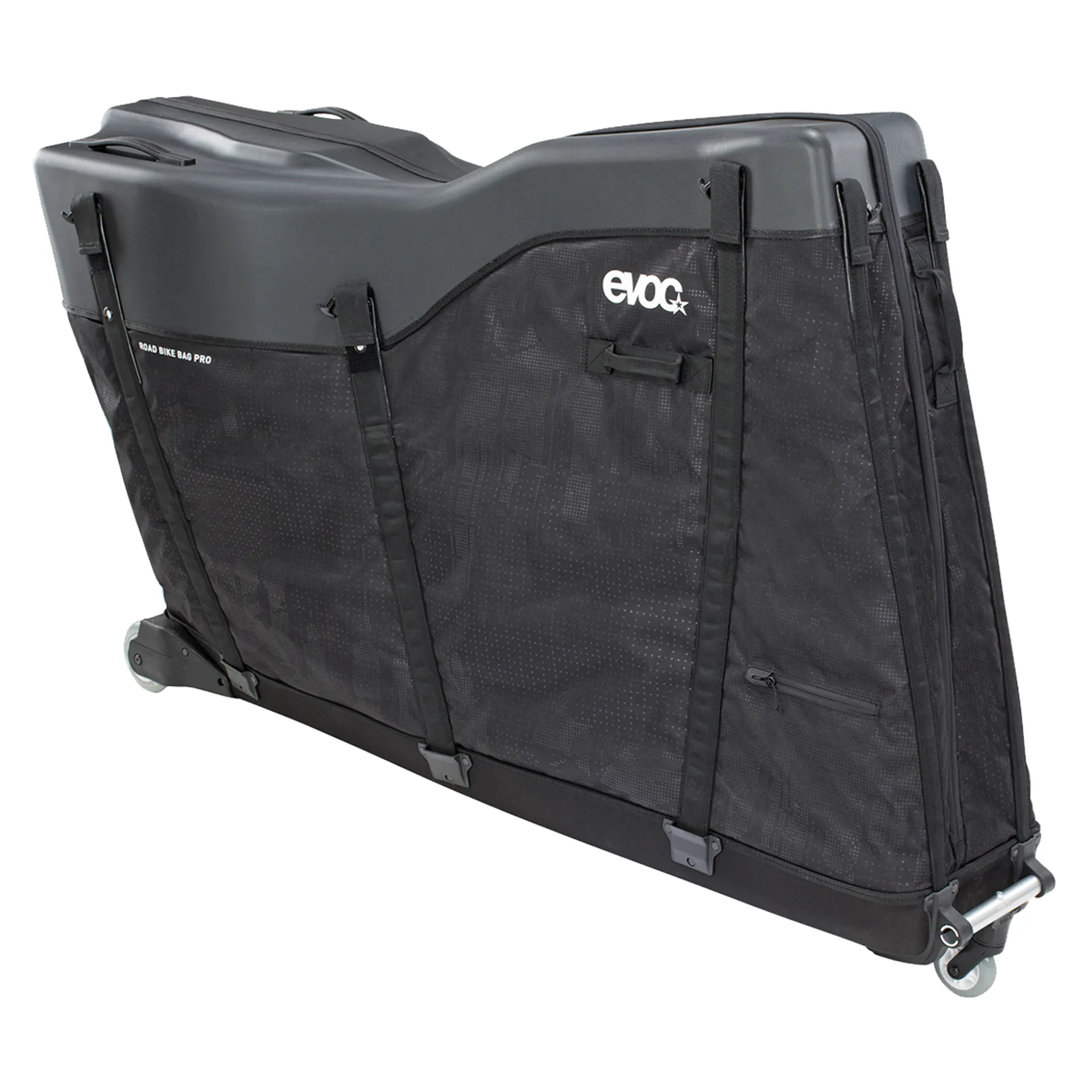

The best transport solution for travelling with the bike.
"Soft where possible, hard where necessary" - Evoc's hybrid concept.
The advantages of a classic hard shell case and a soft pack bag are brought together in this design:
-
Optimised protective function
-
Minimal weight
-
Can be folded up
Specifications:
-
300L, 11.000g (including road bike stand), 92 x 130 x 32cm
Bike fitting proof - only wheels and pedals need to be removed
Extra light and ultra safe hybrid construction which is also collapsible
Easy to travel with thanks to the extra wide wheel chassis, clip on wheel and multiple handles
Including new road bike stand for easy fixation and extra safe transport
-
Maximum wheel base: 106cm
-
Maximum cockpit width: 50cm
-
Maximum saddle height: 86cm (distance between lower part of chainring and top part of saddle)
The fragile areas are optimally protected by intelligent reinforcing elements (polycarbonate covers, moulded EVA shell cases, PE boards and rods, foam padding) for the neuralgic points.
Optimal Force Distribution:

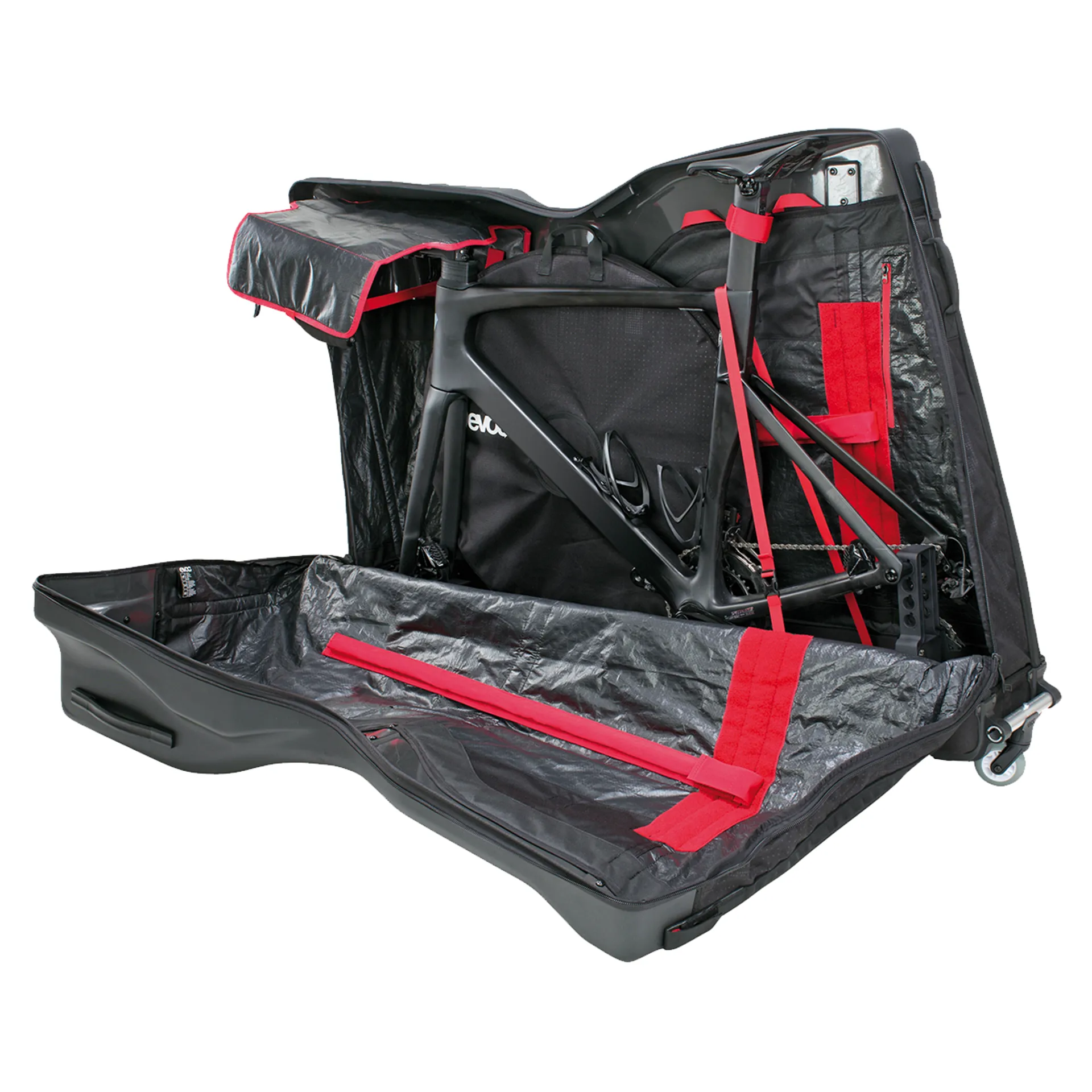

As the frame is positioned upright, the areas of the bike that can take stress, such as the saddle, saddle post, down tube, front set, head tube and fork, are actively used to deflect pressure from the exterior.
Easy Transportation:

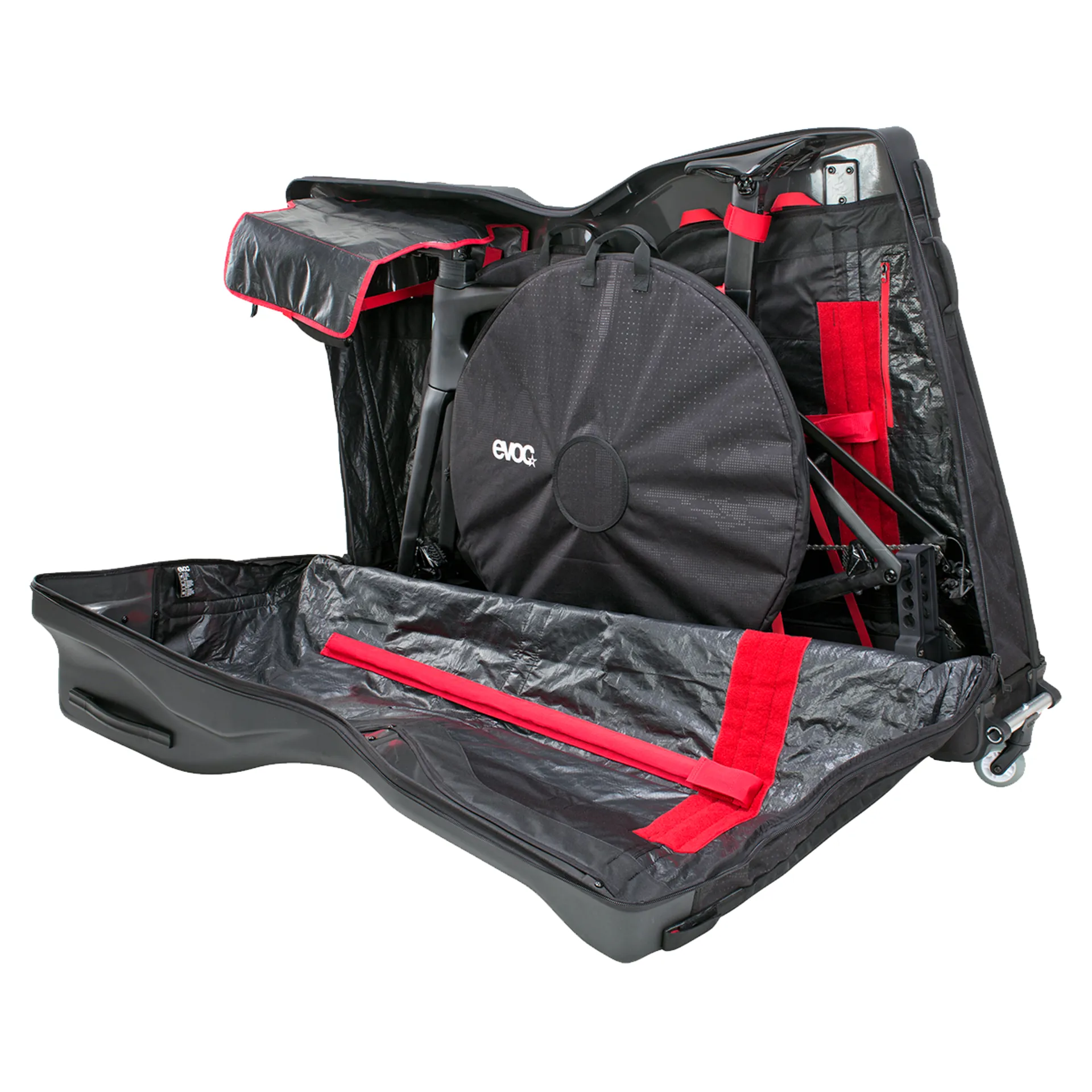

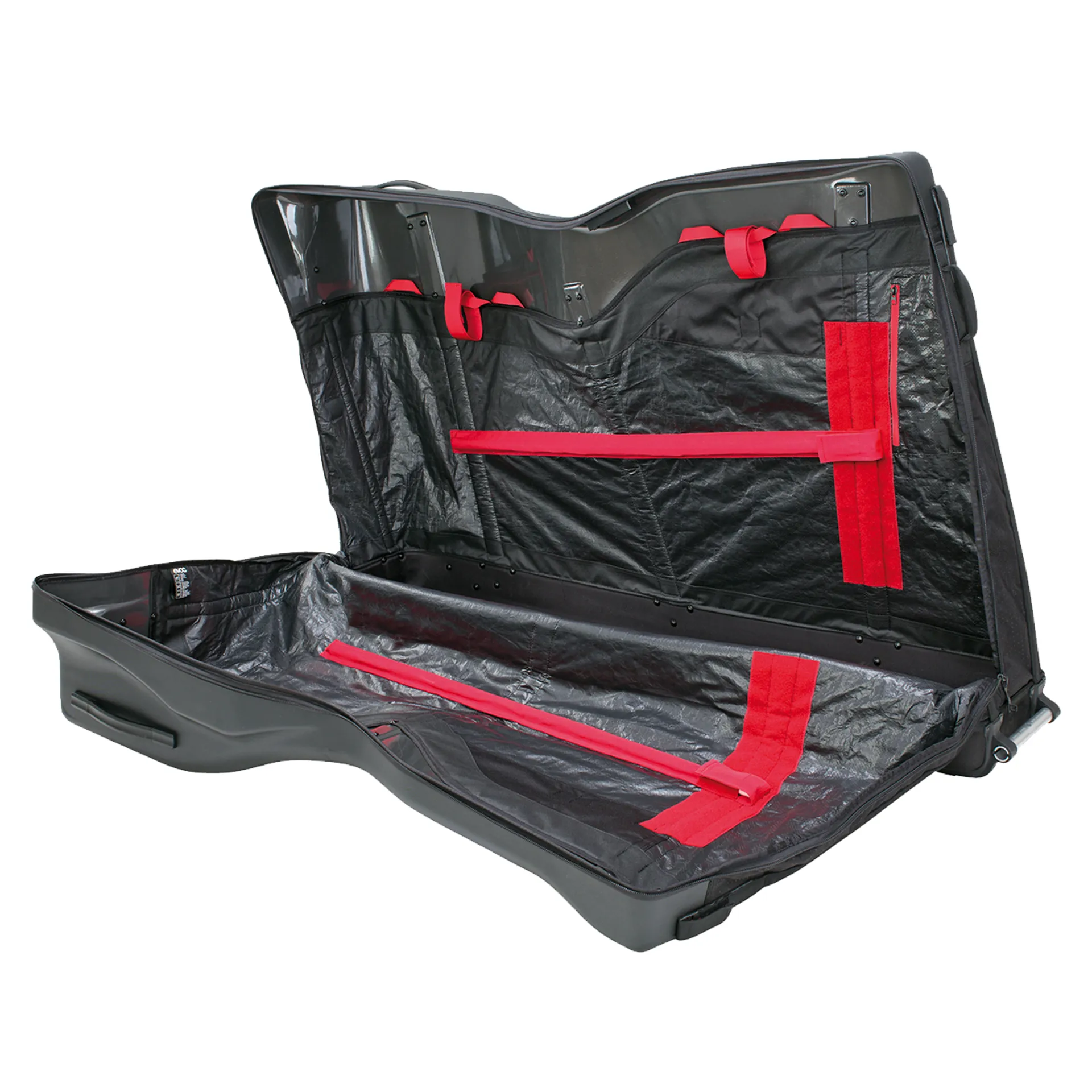

The wheel compartments and the major part of the frame weight are in the rear section of the bag, which means that the centre of gravity is located over the wide and stable trolley parts. It is therefore extremely easy to pull the the bike travel bags, and the multiple and usefully positioned handles make handling easier when loading the bike.
Collapsible:
The GRP rods and plastic rods can be dismantled so the bike travel bags can be folded up and stowed away.

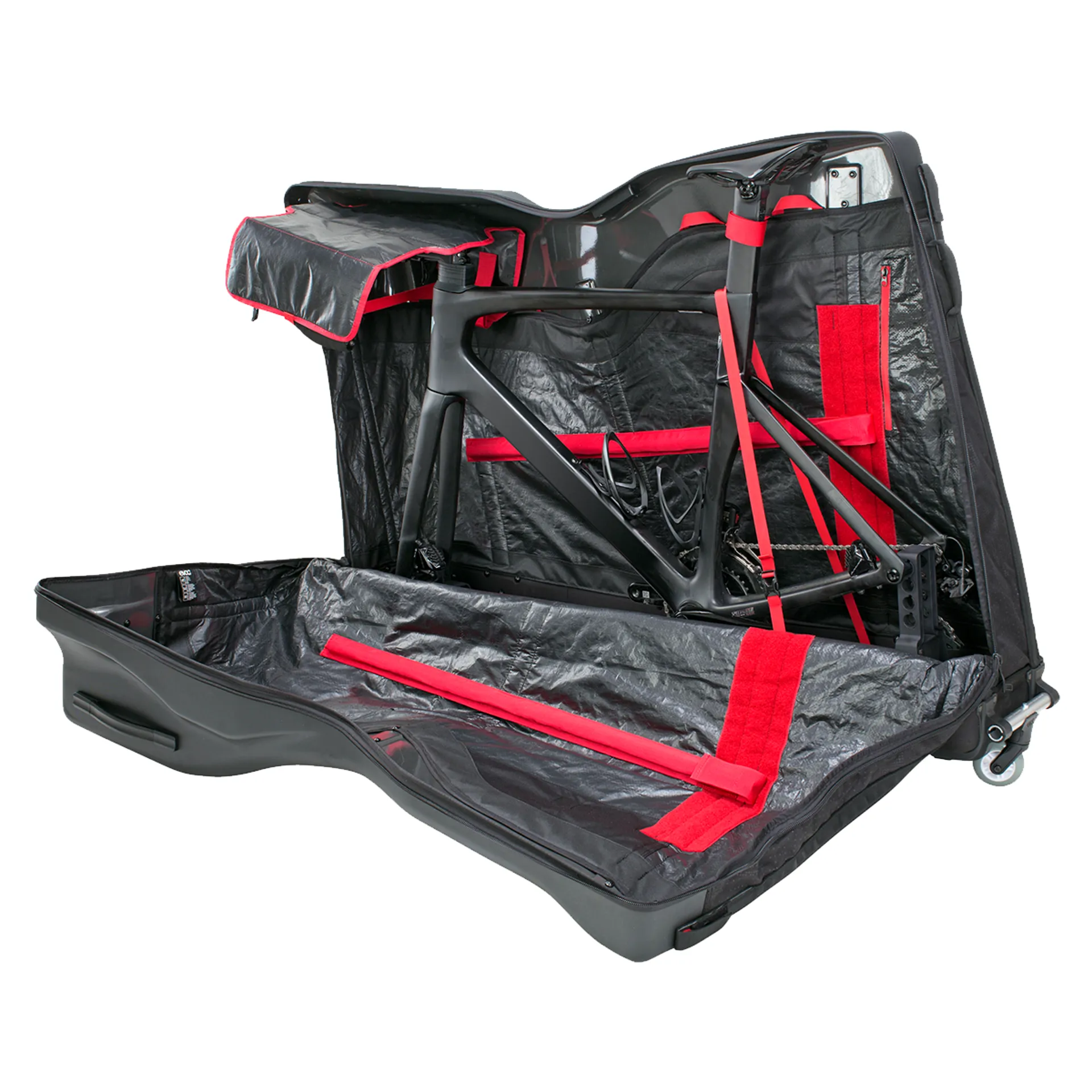

Hybrid, bike fitting proof construction for next level road and triathlon bike travelling:
Very safe, easy to pack and very convenient to handle. For most bike types/sizes, you don't have to remove the handlebar or saddle.
Durable and very light hybrid construction:

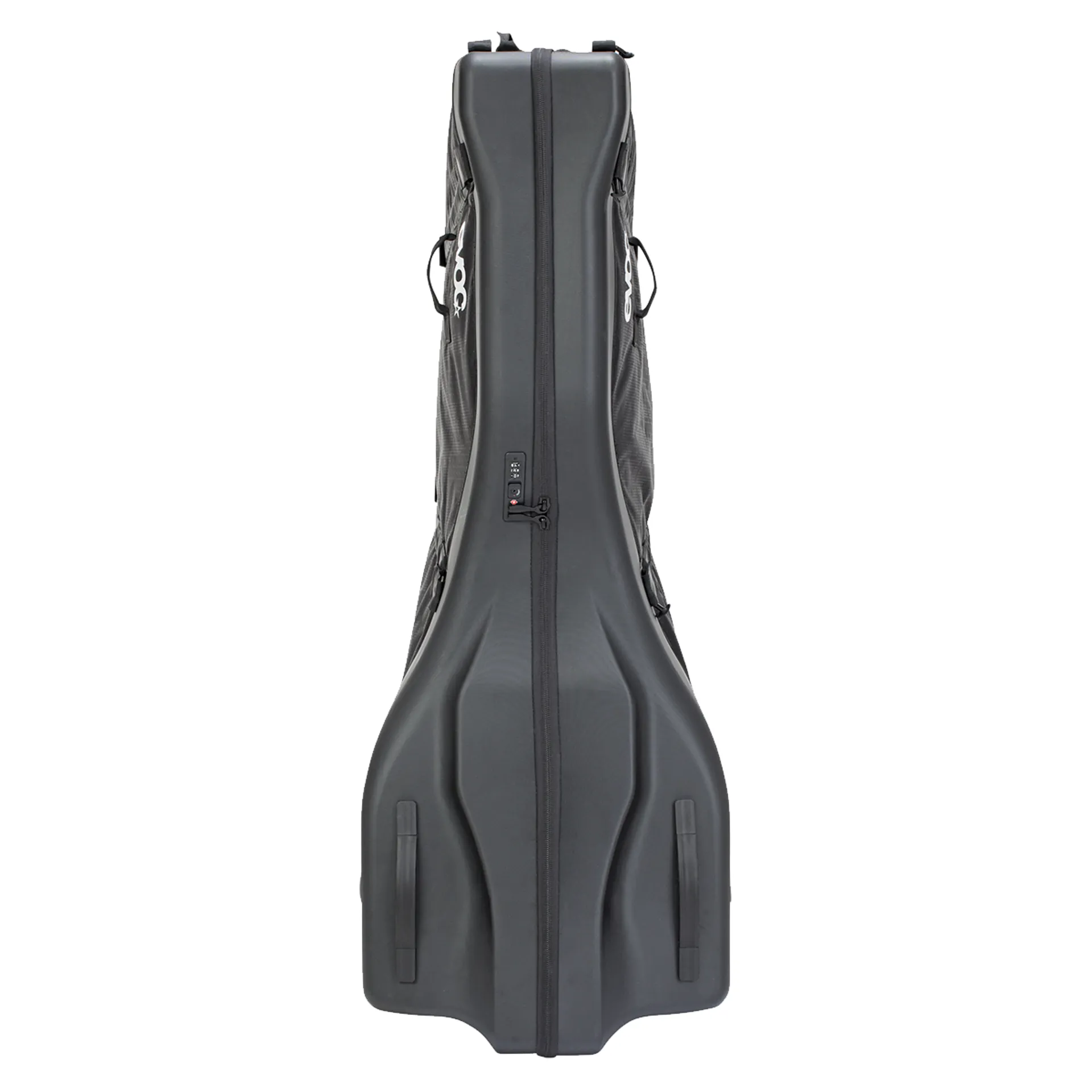

The base is made from a sturdy and durable EVA-molding. An impact proof polycarbonate top protects the upper components of the bike. GFK strings at the sides connect the stable top and bottom parts and prevent from damages by distributing the forces.
Side Impact Absorber:
The side impact absorber can be placed and adjusted variably to protect the back part of the frame against side impacts.
Including road bike stand and clip-on wheel 2.0:
The road bike stand makes the fixation of the bike outside very comfortable and serves as an extra protection item. With the clip-on wheel 2.0, moving the road bike bag pro becomes almost effortless.
