HOW TO INSTALL RPM SPEED ON YOUR BIKE

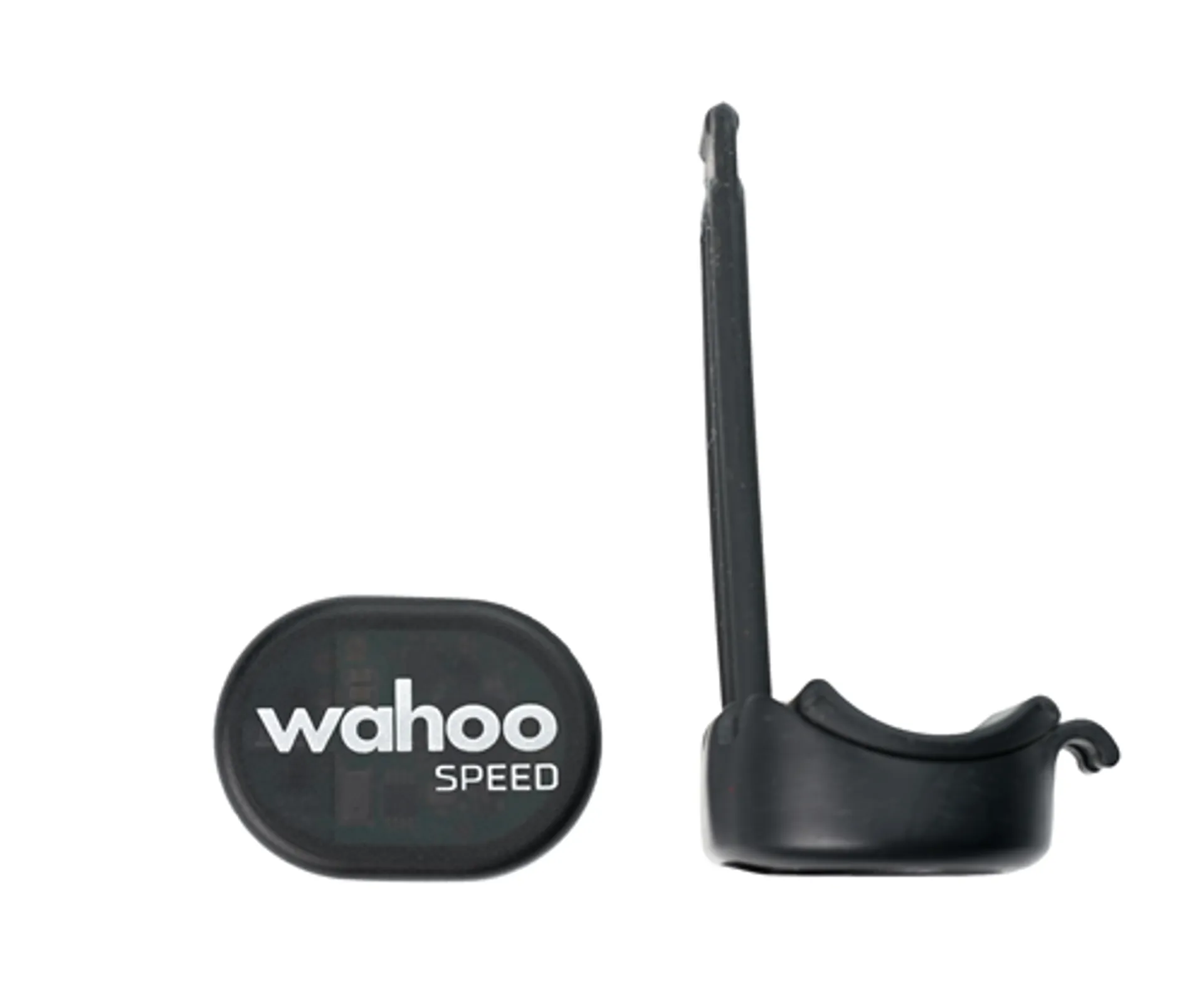

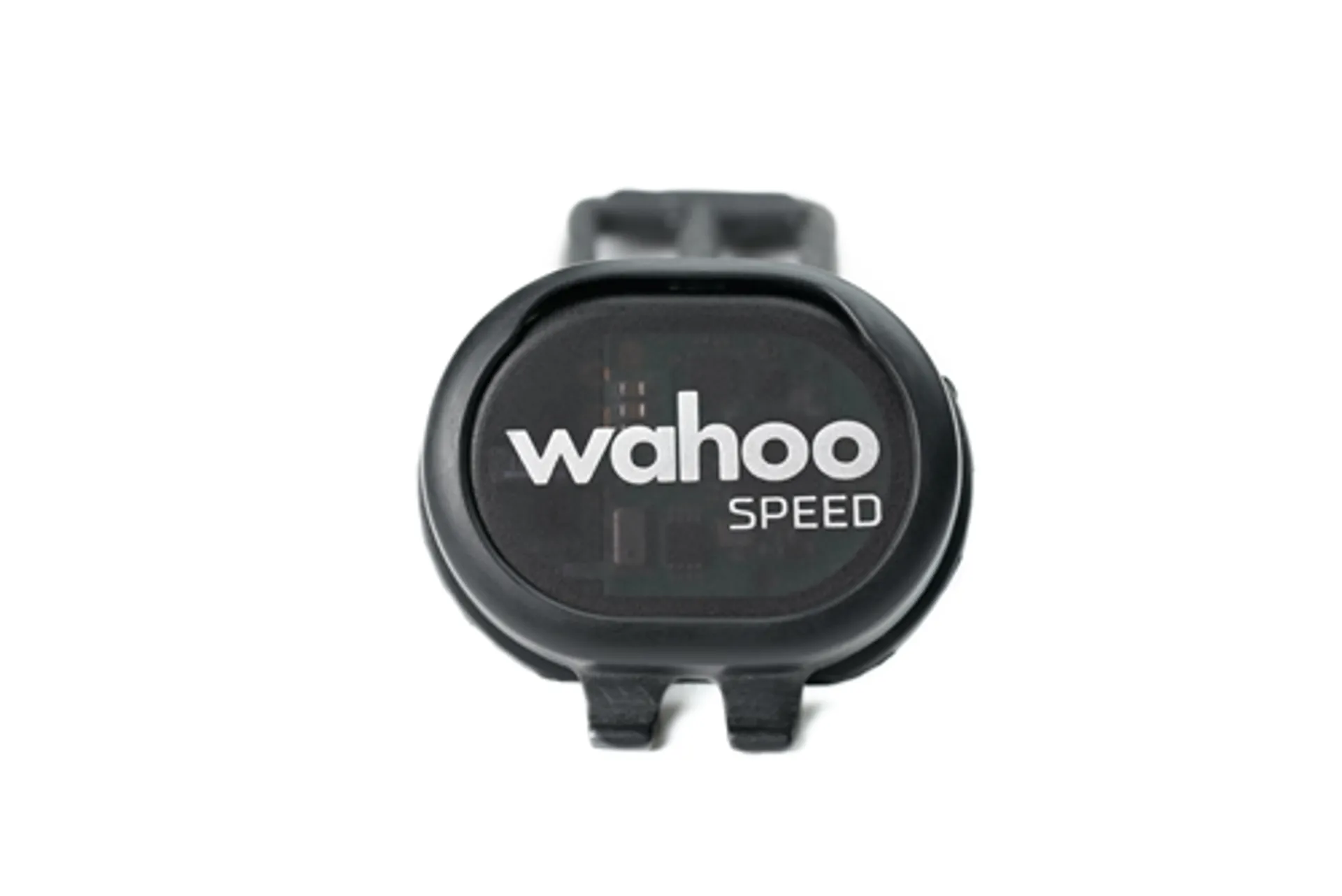

Slide the Wahoo RPM SPEED pod into the mount supplied. Make sure the Wahoo logo is facing outwards on the flush side of the housing and the back of the Wahoo RPM SPEED faces toward the hook side of the mount. The hooks should be facing downward.

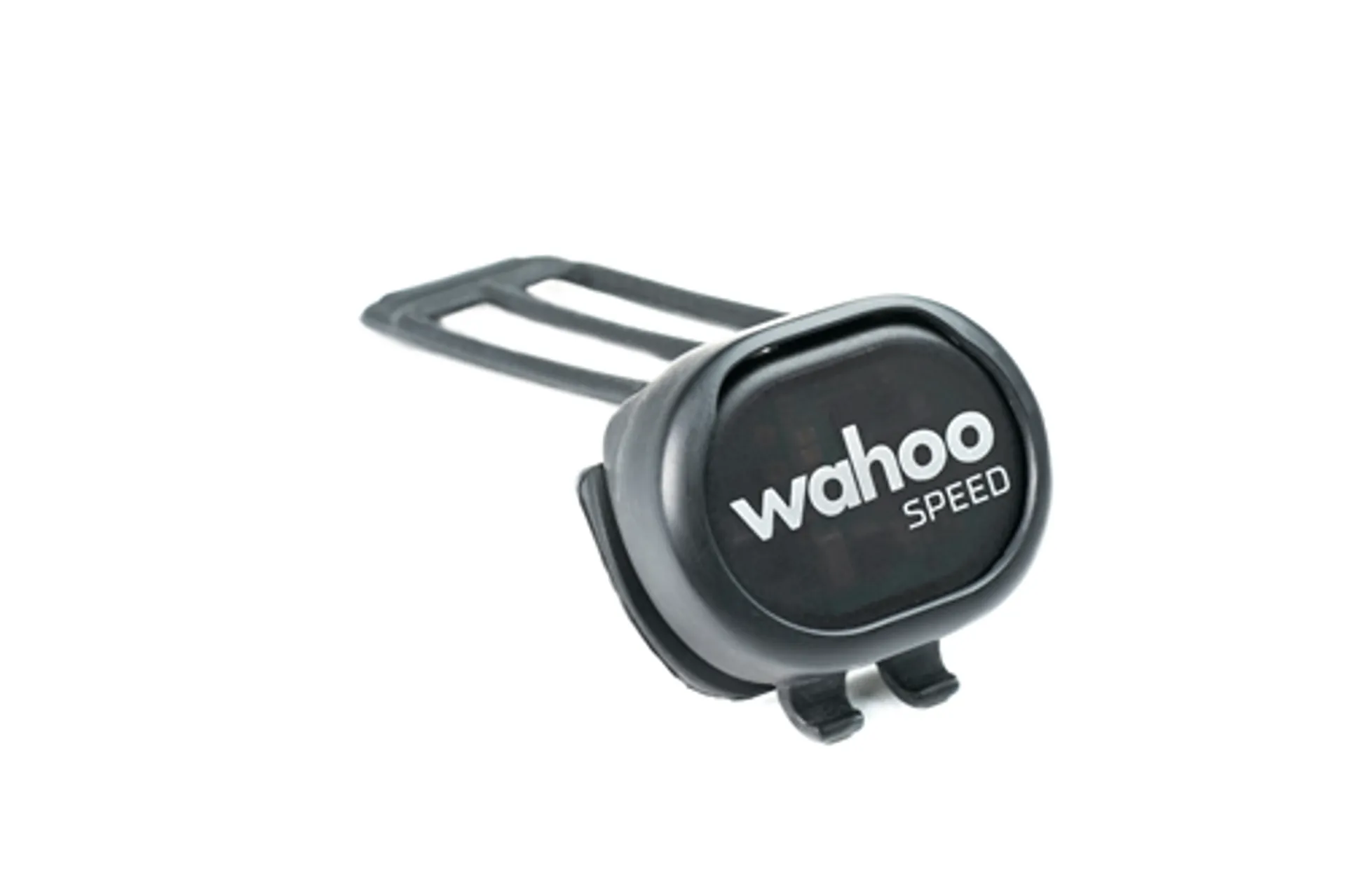

Slide the rubber shim-strap into the back (the hooked) side of the mount so that the three prongs of the strap fit snugly up against the top two hooks of the housing. The Wahoo RPM SPEED is now ready to fit to the hub of either wheel as per your preference.

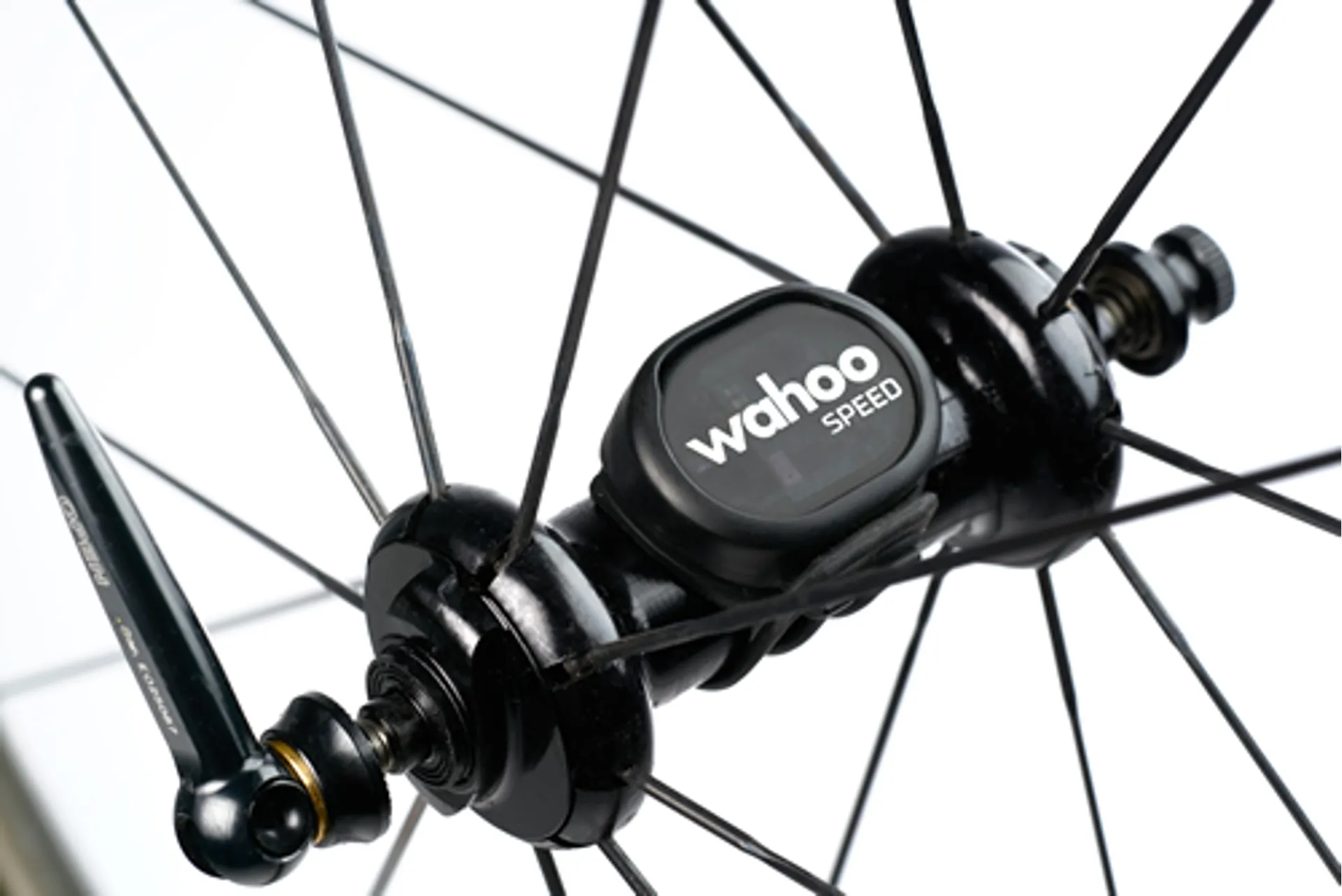

While holding the mount in place on your selected hub, gently stretch the strap portion of the rubber shim-strap around the hub and secure using the bottom two hooks on the mount. When installed correctly, the Wahoo RPM SPEED should not be in contact with any other parts of your bike.
Your Wahoo RPM SPEED is now ready to be paired with the Wahoo Fitness app.
HOW TO PAIR YOUR WAHOO RPM SPEED SENSOR TO THE WAHOO FITNESS APP (IOS)
- Open the Wahoo app for iOS
- Ensure your sensor is awake
- Select the Settings tab in bottom right corner
- Select the Sensors line item
- Select the Add New Sensor button
For a complete setup wizard by product type, select Setup Wizard, your product, and follow the directions that appear. Otherwise, select Quickly pair a new sensor.
- Select the line item for your sensor
- Select the Save Sensor button
- Select the Workout Profiles you would like to associate the sensor with
- Select the Continue button
HOW TO PAIR YOUR WAHOO RPM SPEED SENSOR TO THE WAHOO FITNESS APP (ANDROID)
- Open the Wahoo app for Android
- Ensure your sensor is awake
- Select the Settings tab in bottom right corner
- Select the Sensors line item
- Select the Add New Sensor button
For a full walkthrough of the process, select Setup Wizard. Alternately, Quickly pair a new sensor.
- Choose your sensor from the list of available sensors
- Once certain you are connected to the correct sensor, select Save Sensor
- Choose the workout profiles you would like your sensor to be active for (ex. Cycling & Indoor Cycling)
- Select Continue at the bottom of the screen
Your Wahoo RPM SPEED is now set up and ready for action. To use your Wahoo RPM SPEED, start a workout with one of the profiles you paired it with. The Wahoo Fitness app will remember this pairing in the future. You simply need to wake up your sensor and start a new workout to begin recording data.
NOTE: The Wahoo RPM SPEED uses a Blue LED to give instant feedback to the user during the pairing process. These LEDs operate for about 30 seconds before shutting off to conserve battery. The Blue LED represents your connection state and has three modes:
- Slow Blink (about once every second): Wahoo RPM SPEED is awake and not paired
- 4x Flash: Occurs the instant a connection is made
- Quick Blink (about twice every second): Wahoo RPM SPEED is paired to a device
- The Red LED represents wheel revolutions. You will see one red blink per wheel turn
*If a firmware update is available for your sensor, the Wahoo Fitness app will now prompt you to proceed with performing an update. If you do not, the update may be performed later. Sensors with updates available will appear in the menu of Saved Sensors marked with a badge to indicate the update is available but not installed.
WORKOUT BASICS
STARTING A WORKOUT (IOS)
- Make sure the device has Bluetooth turned on so it can communicate with your Wahoo RPM SPEED.
- Select what kind of workout you wish to do from the list of workout types using the slider.
- Select if you wish to have Audio Announcements turned on or off.
- Activate the Wahoo RPM SPEED by shaking it for a few seconds or if attached to your bike, spin the wheel a few times.
- Make sure the Wahoo RPM SPEED is synced to your device. It will appear in the list of Linked Sensors for that workout profile with an indication of signal strength shown on the far right when it is connected to your device.
- Select the green "Start” button to begin the workout. Information gathered from your Wahoo RPM SPEED will now start to be displayed on your device.
ENDING YOUR WORKOUT (IOS)
- To end your workout, simply select the red "Pause” button.
- Select the red "Stop” button and either a) Discard Workout b) Save Workout or c) Return to Workout.
- If you elect to finish the workout, the Wahoo Fitness app will now display a summary of your workout.
STARTING A WORKOUT (ANDROID)
- Make sure the device has Bluetooth turned on so it can communicate with your Wahoo RPM SPEED.
- Select what kind of workout you wish to do from the list of workout types using the slider.
- Use the Pencil icon to make changes to your workout if required. e.g. Select to edit the Audio Announcements.
- Select the green "Play” button to open a new workout.
- Activate the Wahoo RPM SPEED by shaking it for a few seconds or if attached to your bike, spin the wheel a few times.
- Make sure the Wahoo RPM SPEED is synced to your device. It will appear in the list of Linked Sensors for that workout profile with an indication of signal strength shown on the far right when it is connected to your device (button located in the top right corner).
- Select the green "Start” button to begin the workout. Information gathered from your Wahoo RPM SPEED will now start to be displayed on your device.
NOTE: If a firmware update is available for your sensor, the Wahoo Fitness app will now prompt you to proceed with performing an update using the Wahoo Utility app. Apply updates when available to improve the performance of your sensor. The free Wahoo Utility app is required to perform firmware updates and is available from the Google Play Store.
ENDING YOUR WORKOUT (ANDROID)
- To end your workout, simply select the red "Pause” button.
- Select the red "Stop” button and either a) Discard b) Save or c) Cancel.
- If you elect to save & finish the workout, the Wahoo Fitness app will now display a summary of your workout.
- For more information: Please refer to the instructions page for the Wahoo Fitness app.
WANT TO CONNECT TO ANOTHER APP?
This product is compatible with a number of third party apps. However, each app connects to sensors a little differently. As a general rule: Open the compatible app you would like to use and find the settings. Look for "connect to sensor" or another similar option. You must connect each sensor separately for each app you use.
NOTE: Bluetooth devices can only pair to one app at a time. Make sure to close any background apps that may be using the sensor before connecting to a new app.
