A rugged hardtail eMTB, 69mi range Bosch motor drive and 100mm suspension fork.
A rugged hardtail eMTB, 69mi range Bosch motor drive and 100mm suspension fork.
Cannondale

2022 Cannondale Trail Neo 4 Mens Electric Mountain Bike - Highlighter

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

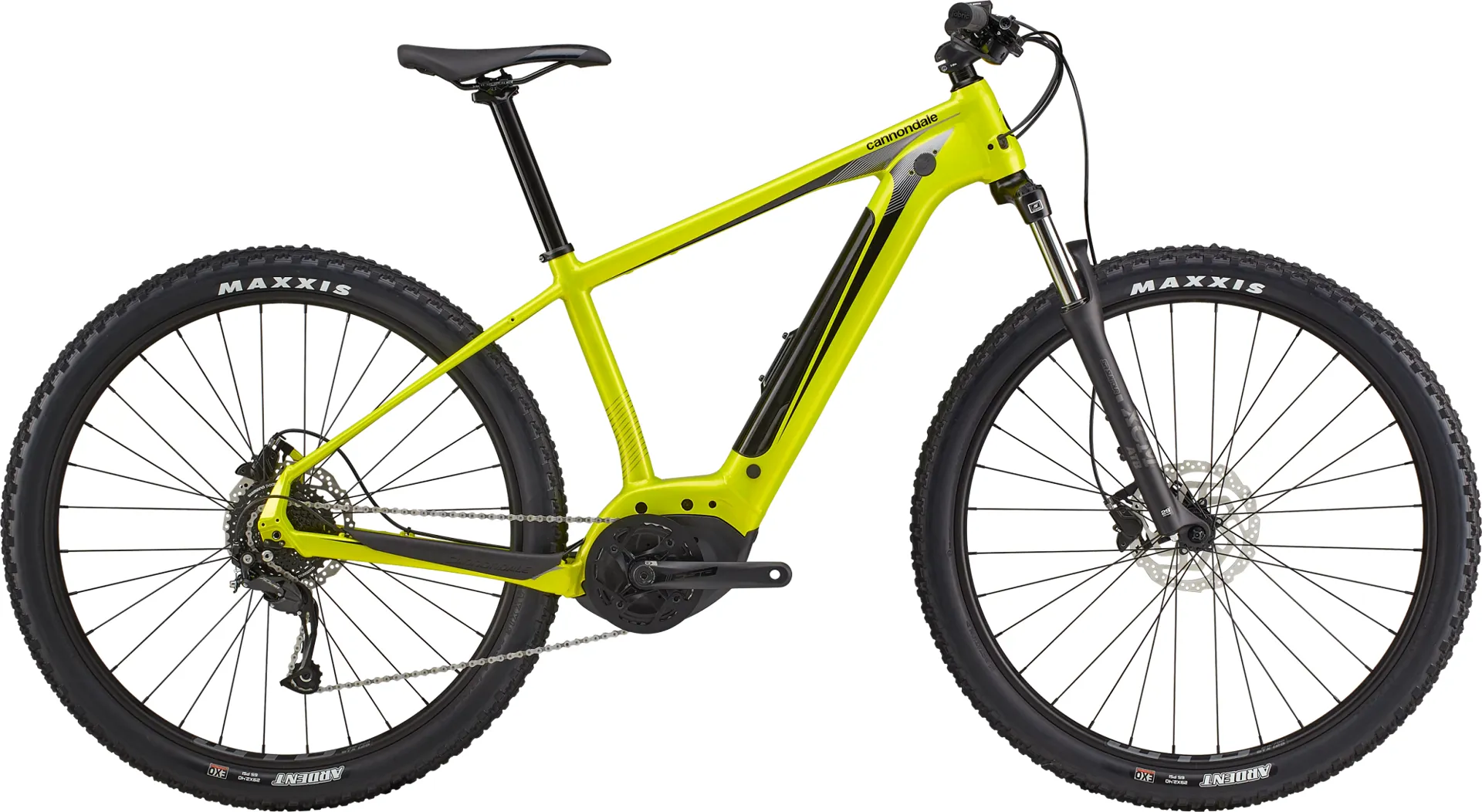

2022 Cannondale Trail Neo 4 Mens Electric Mountain Bike - Highlighter

Season:2022

Brand:Cannondale

Code:C61451MHigher

Level Up

An e-mountain bike that will raise your game and ignite a passion for the trail. It thrives on low-impact trails, and up and down hills, and is built for speed, efficiency and handling.

  • Durable SmartForm C2 Alloy frame
  • SR Suntour XCM 100mm fork
  • Shimano Alivio 9-speed drivetrain
  • Hydraulic disc brakes
  • Bosch Performance Line drive unit
  • 500Wh battery
  • Range: up to 112km

Perfectly Framed

Light and lively, stiff and snappy on everything from serious singletrack to city streets, Trail’s progressive frame and cleanly integrated Bosch drive unit showcase Cannondale's unmatched aluminium expertise.

Confident Handling

Short chainstays for agility and traction, a slack head angle for solid stability, and a battery and drive unit positioned as low and centrally as possible create a surprisingly nimble, yet steady feel.

Ready for Anything

True mountain bike specs distinguish Trail Neo: powerful hydraulic brakes, wide handlebars and short stems. It is versatile too, with pre-wired light cables and clever mounts for racks and mudguards.

Powered by Bosch

The Bosch Performance Line Cruise is perfect for urban and adventure riding. With 65Nm of torque, it's powerful, silent and light.

SmartForm C1 Alloy

Cannondale's premium alloy construction. C1 uses every technique in their arsenal to create frames that are incredibly light, stiff and durable, with a ride-feel that could only come from Cannondale.

29" Wheels

Trail Neo 4 comes with fast-rolling, versatile 29 inch wheels on all sizes.

Dual Battery Compatibility

No more range anxiety. The Trail Neo frame comes pre-wired and ready for the installation of a second battery for longer rides and bigger adventures.

The Ai Advantage

Cannondale's Ai Offset Drivetrain opens up the rear triangle for more tyre clearance, while keeping the chainstays short for nimble agility. A stiffer, stronger rear wheel is just the icing on the cake.

KickFlip Mount

Sleek, hidden mount makes it easy to add a kickstand for around-town convenience.

Technical Information
  • Frame
    SmartForm C2 Alloy, removable downtube battery, SAVE, tapered headtube, internal cable routing, 148x12mm thru-axle, post mount disc, folding lock mount, rack/fender mounts, Si kickstand mount
  • Fork
    SR Suntour XCM, 100mm, Coil, 46mm offset
  • Drive Unit
    Bosch Performance Line Cruise
  • Battery
    Bosch Powertube 500Wh
  • Display
    Bosch Purion
  • Charger
    Bosch 2A
  • Rims
    WTB STX i25 TCS, 32h, tubeless ready
  • Hubs
    (F) Shimano HB M4050 / (R) Shimano MT400, 12x148mm thru-axle
  • Spokes
    DT Swiss Champion
  • Tyres
    Maxxis Ardent, 29 x 2.4”, Wire 60TPI Exo
  • Pedals
    Not included
  • Crank
    FSA Bosch E-Bike, 34T
  • Chain
    Shimano HG93A, 9-Speed
  • Rear Cogs
    Shimano HG200, 11-36, 9-speed
  • Rear Derailleur
    Shimano Alivio, 9-Speed
  • Shifters
    Shimano Alivio, 9-speed
  • Handlebar
    Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm
  • Grips
    Fabric Funguy
  • Stem
    Cannondale 3, 6061 Alloy, 31.8, 0°
  • Headset
    Integrated Sealed Bearing, Tapered
  • Brakes
    Shimano MT200 hydraulic disc, 180mm RT10 rotors
  • Brake Levers
    Shimano MT200 hydraulic disc
  • Saddle
    Cannondale Ergo XC
  • Seatpost
    Cannondale 4, 6061 Alloy, 31.6 x 350mm
  • Sizes
    SM, MD, LG, XL
  • Colour 1
    Highlighter (HLT)
  • Extras
    Pre-installed light cables
Sizing Information
Size in ft5'4" - 5'8"5'7" - 6'0"6'0" - 6'3"6'4" - 6'8"
Size in cm162 - 172cm170 - 182cm182 - 190cm193 - 203cm
Bike SizeSMLXL
