The all-new Specialized Turbo Levo Electric Mountain Bike redefines trail riding with its unmatched blend of ride quality, usable power, and extensive range.
The all-new Specialized Turbo Levo Electric Mountain Bike redefines trail riding with its unmatched blend of ride quality, usable power, and extensive range.
Specialized

2023 Specialized Turbo Levo Alloy Electric Mountain Bike - Moss Green

£4,900.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

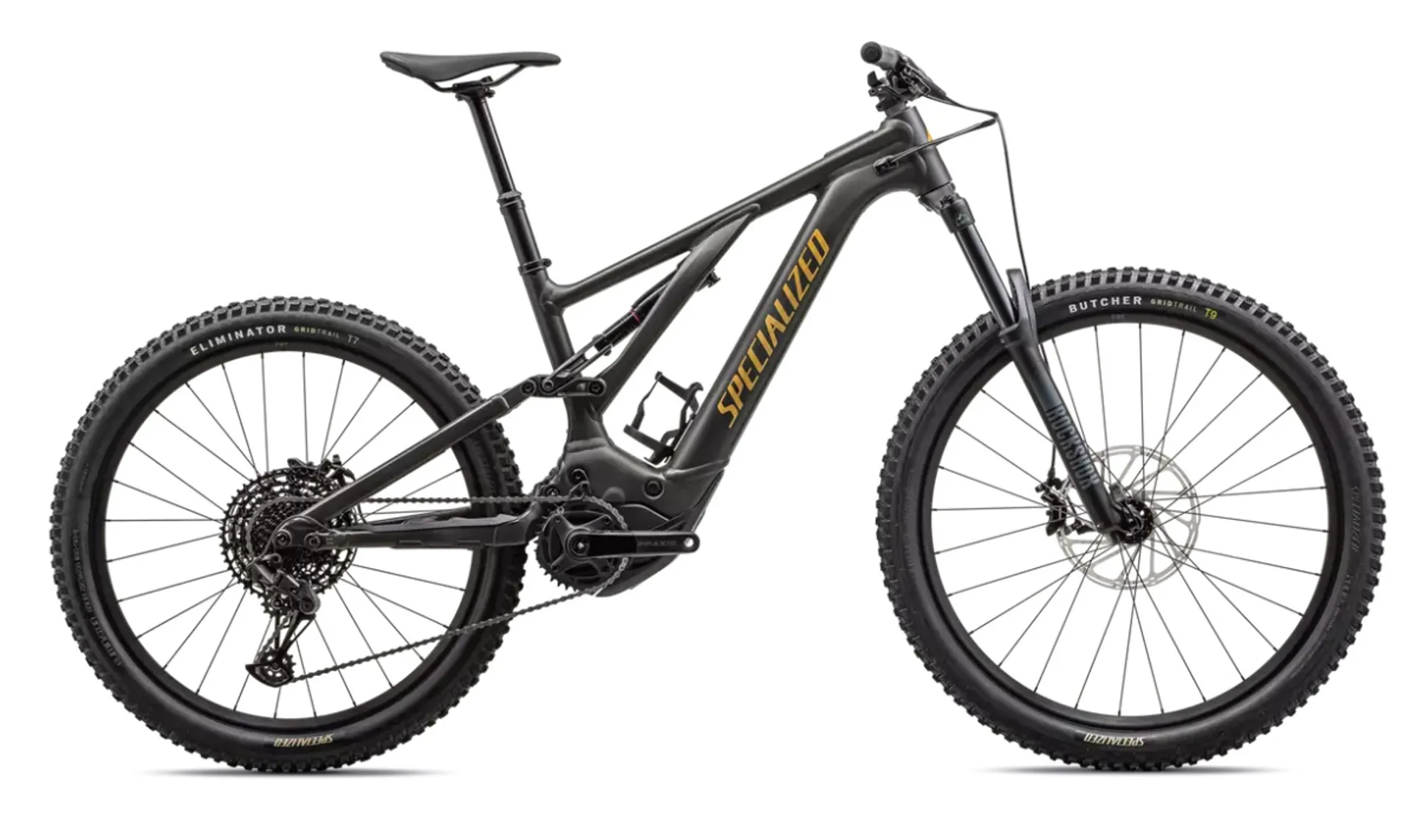

2023 Specialized Turbo Levo Alloy Electric Mountain Bike - Moss Green

Season:2023

Brand:Specialized

Code:349670346839

The all-new Specialized Turbo Levo Electric Mountain Bike redefines trail riding with its unmatched blend of ride quality, usable power, and extensive range. It's the culmination of 40 years of expertise in crafting the world's best mountain bikes. Since its debut, the Levo has set the standard for e-MTBs, and the new model raises the bar even higher.

At its core is the Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), providing a smooth and seamless boost to your efforts (up to 4x your power) giving you the freedom to choose where and when you ride. With a range that supports up to five hours of trail time, you can ride further and explore more than ever before. The optimised chassis features 150mm of custom-tuned rear suspension and adjustable geometry, ensuring a stable and natural ride.

More climbs, more descents, more miles, and more fun. Equipped with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the Turbo Levo enhances everything you love about trail riding.

Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and TCU deliver 90 Nm of torque and 565 watts of power for up to five hours of ride time, enabling you to ride further and faster than ever. The TCU is more than an "On-Off" button, it's the brain of the bike, displaying battery level and power-assist mode, and communicating via ANT+/Bluetooth® with an optional handlebar display for more ride data.

All business up front and party in the back. A mixed-wheel design with a 27.5” rear wheel and 29” front wheel offers a nimble ride that outperforms other full-power e-MTBs. The generous cockpit centres you on the bike, optimising traction and corner control, while the low bottom bracket, slack headtube angle, and reduced fork offset ensure stability on rough terrain.

The Levo features two distinct geometry settings, allowing easy adjustment for any riding style and terrain. The bottom bracket height can be fine-tuned by 7mm. Its 150mm of rear travel smoothly handles small bumps, square-edged hits, and massive G-outs, while maintaining excellent pedal response and power efficiency.

The Levo's S-Sizing is based on rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover heights, let you choose the size that best fits your riding style. Smaller S-Sizes offer nimbleness and flickability, while larger S-Sizes provide stability and a roomier ride.

Technical Information
  • Frame
    Specialized M5 premium alloy, 150mm travel, 29" wheel front, 27.5" rear, BB height adjust, S-Sizing, internal cable routing, 148mm spacing
  • Fork
    RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel
  • Rear Shock
    RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm
  • Stem
    Alloy Trail Stem, 35mm bar bore
  • Handlebars
    Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
  • Grips
    Specialized Trail Grips
  • Front Brake
    SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm
  • Rear Brake
    SRAM Guide RE, 200mm
  • Shift Levers
    SRAM SX Eagle, 12-speed
  • Rear Derailleur
    SRAM SX Eagle, 12-speed
  • Cassette
    SRAM NX Eagle, 12-speed, 11-50t
  • Crankset
    Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm
  • Chain
    SRAM NX Eagle, 12-speed
  • Chainrings
    SRAM X-Sync Eagle, 104 BCD, 34t, steel
  • Front Hub
    Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
  • Rear Hub
    Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
  • Front Tyre
    Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
  • Rear Tyre
    Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
  • Inner Tubes
    Standard, Presta Valve
  • Saddle
    Body Geometry Bridge Saddle, steel rails
  • Seatpost
    TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm
  • Seat Binder
    Alloy, 38.6mm
  • Motor
    Specialized 2.2 Custom Rx Trail Tuned Motor
  • UI/Remote
    Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
  • Battery
    Specialized M3-700, Integrated battery, 700Wh
  • Charger
    Custom charger, 42V4A w/ Rosenberger plug, 100-240V
  • Wiring Harness
    Custom Specialized wiring harness
  • Spokes
    DT Swiss Industry
  • Rims
    Specialized 29, hookless alloy, 30mm inner width, tubeless ready
  • As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft4'11" - 5'3"5'2" - 5'8"5'5" - 5'11"5'8" - 6'2"5'10" - 6'4"6'2" - 6'8"
Size in cm150 - 160cm157 - 173cm165 - 180cm173 - 188cm178 - 193cm188 - 203mm
Bike SizeXSSMLXLXXL
Bike S-SizingS1S2S3S4S5S6

GEOMETRY

SizeS1S2S3S4S5S6
BB Drop25mm27mm27mm27mm27mm27mm
BB Height352mm350mm350mm350mm350mm350mm
Bike Standover Height752mm776mm783mm787mm788mm790mm
Chainstay Length442mm442mm442mm442mm442mm442mm
Fork Length, Full557mm567mm567mm567mm567mm567mm
Fork Rake/Offset44mm44mm44mm44mm44mm44mm
Front Centre738mm760mm784mm814mm843mm878mm
Head Tube Angle64.5°64.5°64.5°64.5°64.5°64.5°
Head Tube Length105mm105mm115mm125mm135mm145mm
Reach412mm432mm452mm477mm502mm532mm
Seat Tube Angle78°77.2°76.7°76.2°76.2°76.2°
Seat Tube Length380mm390mm405mm425mm445mm465mm
Stack605mm617mm626mm635mm644mm653mm
Min Seatpost Insertion80mm80mm80mm80mm80mm80mm
Max Seatpost Insertion210mm220mm240mm255mm275mm295mm
Trail130mm130mm130mm130mm130mm130mm
Wheelbase1179mm1200mm1225mm1255mm1284mm1318mm
Crank Length160mm160mm160mm160mm160mm160mm
Handlebar Width780mm780mm780mm780mm780mm780mm
Stem Length40mm40mm40mm40mm50mm50mm
Saddle Width155mm155mm143mm143mm143mm143mm
Seatpost Length100mm125mm150mm170mm170mm200mm
