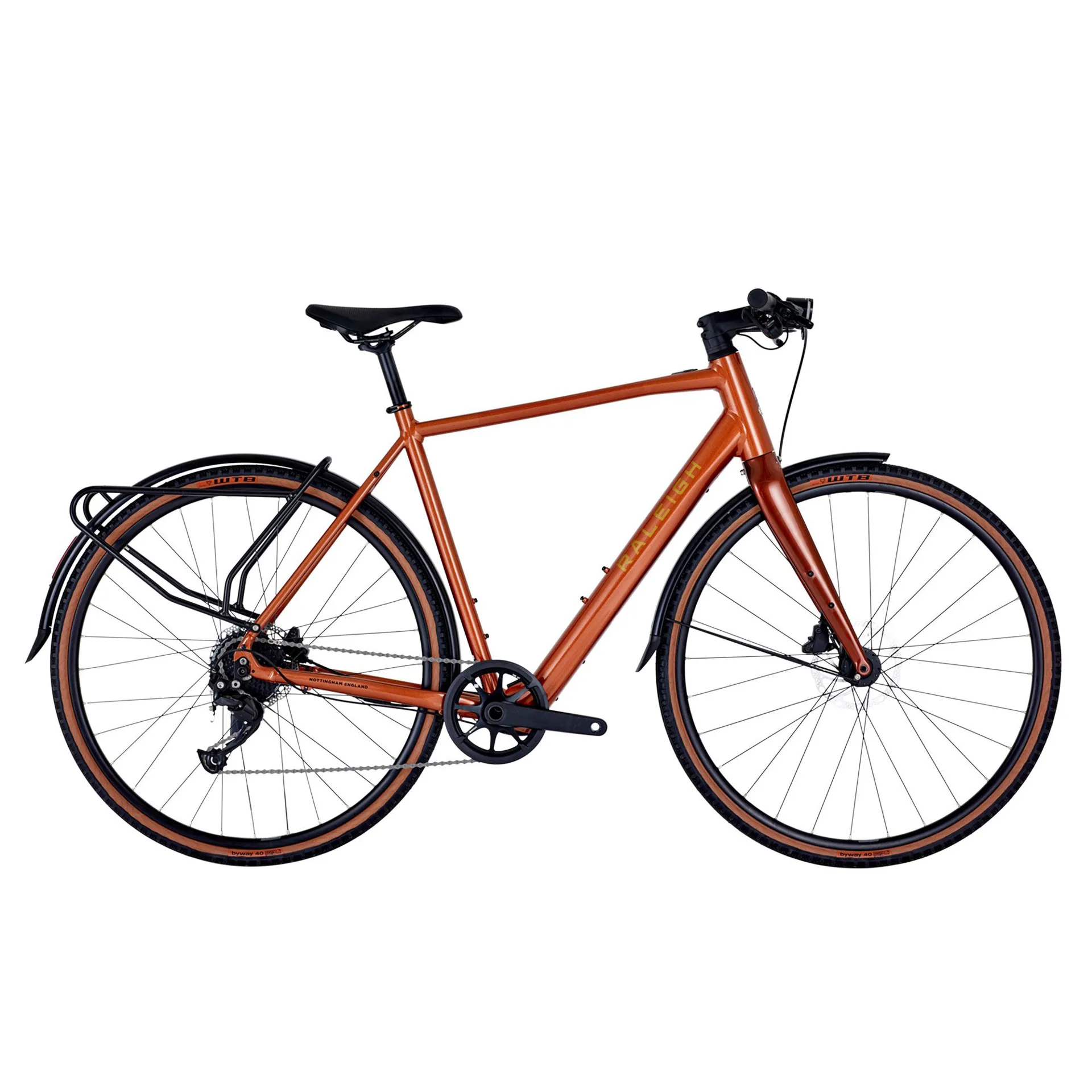

Raleigh Trace Electric Hybrid Bike - Copper

Season:2022

Brand:Raleigh

Code:RTAM2RED

Experience the freedom to explore, beat the traffic and commute on a lightweight electric bike that makes riding more exciting.

Tap in, tap out, press start, press stop. Your journey could be so much more fun if it weren’t for timetables, traffic jams, and diversions. The freedom to go whenever and wherever may sound too good to be true but its not.

No fumes, more zooms, make tracks around the city that leave no trace. Raleigh designed Trace to be your call to fun and freedom. Wave goodbye to gridlock, there’s adventure to be had, and all before 9am.

This lightweight, electric bike makes nipping about the city 10x more enjoyable. The unassuming frame hides a 250Wh battery to give your journey a welcome boost, meaning you have time to prioritise the really important decisions, like what pastry to get with your morning coffee.

Make your mark and redesign your routine; no sweat, no grind, just ride.

Lightweight

Coming in at 16.5kg, this nimble electric bike can nip about the city with ease. If you live in an apartment, the Trace is designed to be heavy on features on light on weight, making it easy to carry up and downstairs.

It's Electric

It may not look like it but that is because the stealthy electrical assistance is tucked away neatly into the frame, ready and waiting for when you need a little extra boost.

Fully Equipped

Lights, panniers, action. Geared up for hitting the tarmac, Trace has everything you need to explore your urban playground with ease.

Technical Information
  • Electric
    Yes
  • Fork Material
    Carbon
  • Fork Type
    Rigid tapered carbon fork
  • Frame Material
    Aluminium 6061
  • Frame Shape
    Crossbar
  • Total Bike Weight
    16.5kg
  • Battery
    Ebikemotion X35 internal battery 250Wh
  • Battery Charger Type
    Ebikemotion X35 2A
  • Battery Charging Time
    4 hours
  • Battery Integration
    Internal
  • Battery Watts per Hour
    250Wh
  • Display
    Ebikemotion X35 Top Tube HMI iWoc 1 Control
  • Max Range
    50 miles
  • Motor
    Ebikemotion X35 rear hub
  • Motor Position
    Rear Wheel
  • Sensor
    Ebikemotion Sensor
  • Grips
    XLC Comfort Grips
  • Handlebar
    Aluminium Handlebar 640mm
  • Saddle
    Selle Royal Vivo
  • Seatpost
    Aluminium Seatpost 27.2x350mm
  • Seatpost Clamp
    Aluminium Clamp 31.9
  • Stem
    Aluminium Stem XS/S-80mm, M-90mm, L-100mm
  • Front Brake
    Tektro R280 Flat Mount Hydraulic Disc Brake, 160mm
  • Number of Gears
    9
  • Rear Brake
    Tektro R280 Flat mount hydraulic disc brake, 160mm
  • Rear Shifter
    Shimano Acera rapidfire 9 speed shifter
  • Bottom Bracket
    Pressfit BB 86mm
  • Cassette
    Shimano HG200 9 speed 11-34t
  • Chain
    KMC x9 9 speed chain
  • Crankset
    Aluminium crank with direct mount chainring and Chainguard 40t 170mm
  • Drivetrain
    Chain
  • Gear Shift
    Derailleur Gear
  • Pedals
    Aluminium Platform Pedal
  • Rear Derailleur
    Shimano Alivio 9 speed rear derailleur
  • Front Tyre
    700x40c WTB ByWAY tanwall
  • Front Wheel
    700c double side wall rim with thru axle aluminium hub 28H
  • Inner Tubes
    622x40 schrader valve
  • Rear Tyre
    700x40c WTB ByWAY tanwall
  • Rear Wheel
    700c double side wall rim with X35 motor hub 32H
  • Rim
    700c double side wall rim with thru axle aluminium hub 28H
  • Front Light
    AXA Compact Line 35
  • Mudguards
    Curana full mudguard set
  • Rear Carrier
    Low profile Rear Carrier
  • Rear Light
    Integrated into Mudguard
  • As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

Rider Height (inches)Rider Height (cm)Frame Size (inches)Frame Size (cm)
5' - 5'4"152 - 163cm17 - 18 inch44 - 46cm (26in wheel)
5'4" - 5'9"163 - 175cm18 - 19 inch46 - 48cm
5'7" 6'1"170 - 185cm19 - 20 inch50 - 52cm
5'10" - 6'3"178 - 193cm21 - 22 inch54 - 56cm
