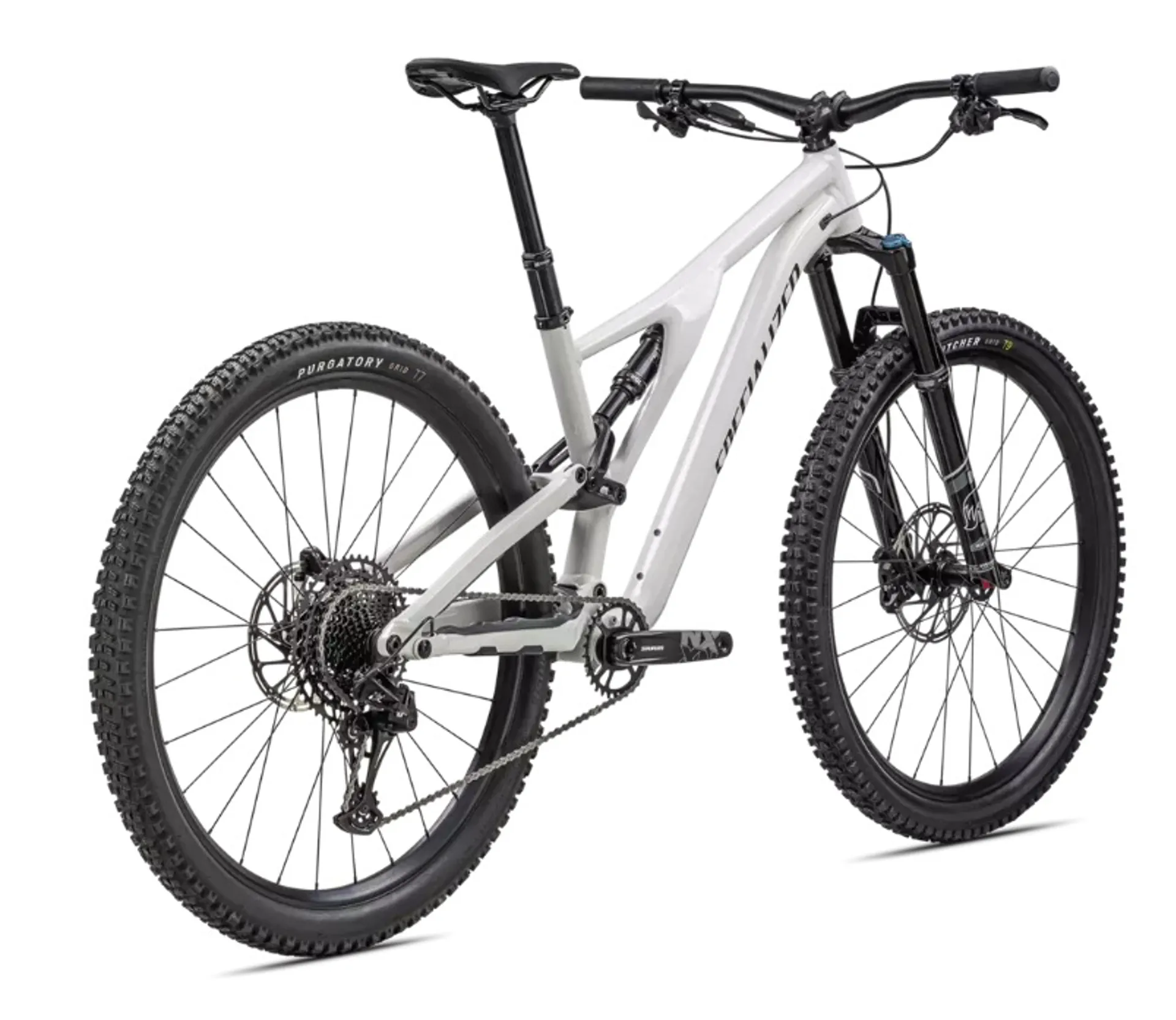

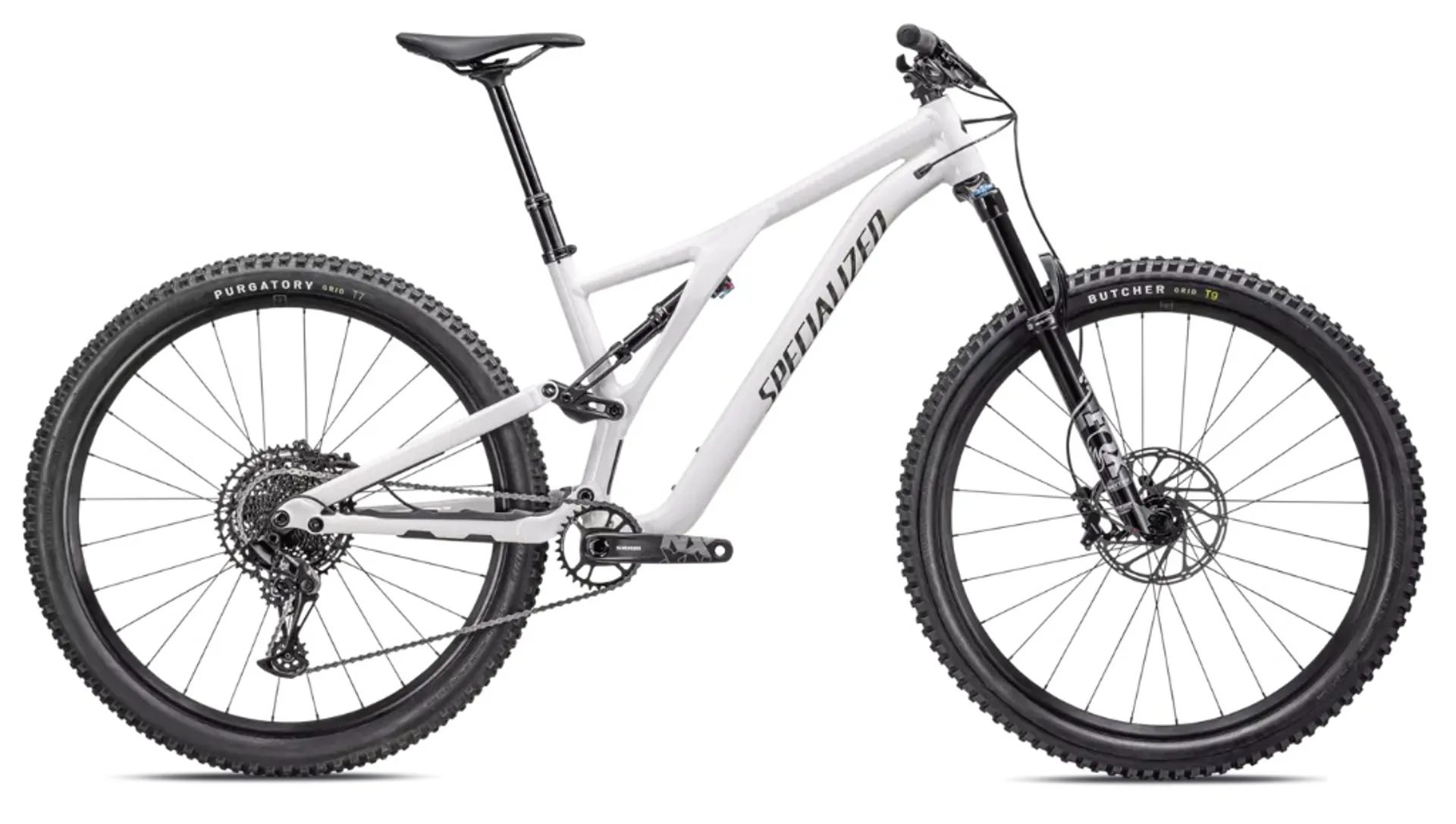

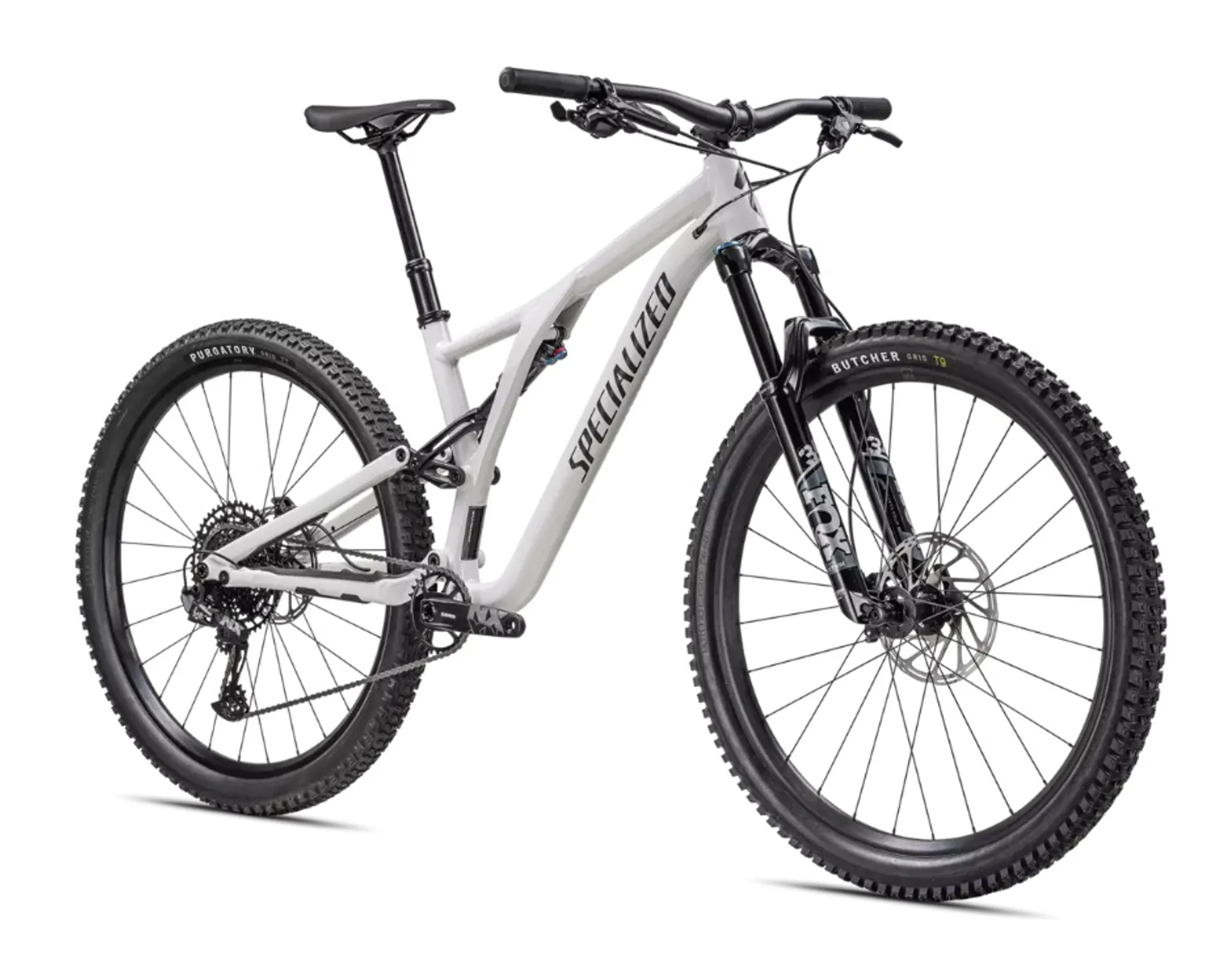

frame
Alloy chassis and rear-end, asymmetrical design, 29 Trail Geometry, horst pivot BB adjustment, threaded BB, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel
rear shock
FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, S1:190x42.5mm, S2-S6: 190x45mm
fork
FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 140mm of travel
stem
Alloy Trail Stem, 35mm bar bore
handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width
tape
Specialized Trail Grips
saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
seatpost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm
front brake
SRAM G2 R, 4-piston caliper, hydraulic disc, 200mm
rear brake
SRAM G2 R, 4-piston caliper, hydraulic disc, 180mm
rear derailleur
SRAM NX Eagle, 12-speed
shift levers
SRAM NX Eagle, trigger, 12-speed
cassette
SRAM NX Eagle PG-1230, 12-speed, 11-50t
chain
SRAM NX Eagle, 12-speed
crankset
SRAM NX Eagle, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
chainrings
Steel, 30T
bottom bracket
SRAM DUB, BSA 73mm, threaded
rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
front hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
rear hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
spokes
DT Swiss Industry
front tyre
Butcher, GRID casing, GRIPTON® T7 compound, 29x2.3"
rear tyre
Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"
inner tubes
Standard, Presta valve
seat binder
Alloy, 38.6mm
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
