frame

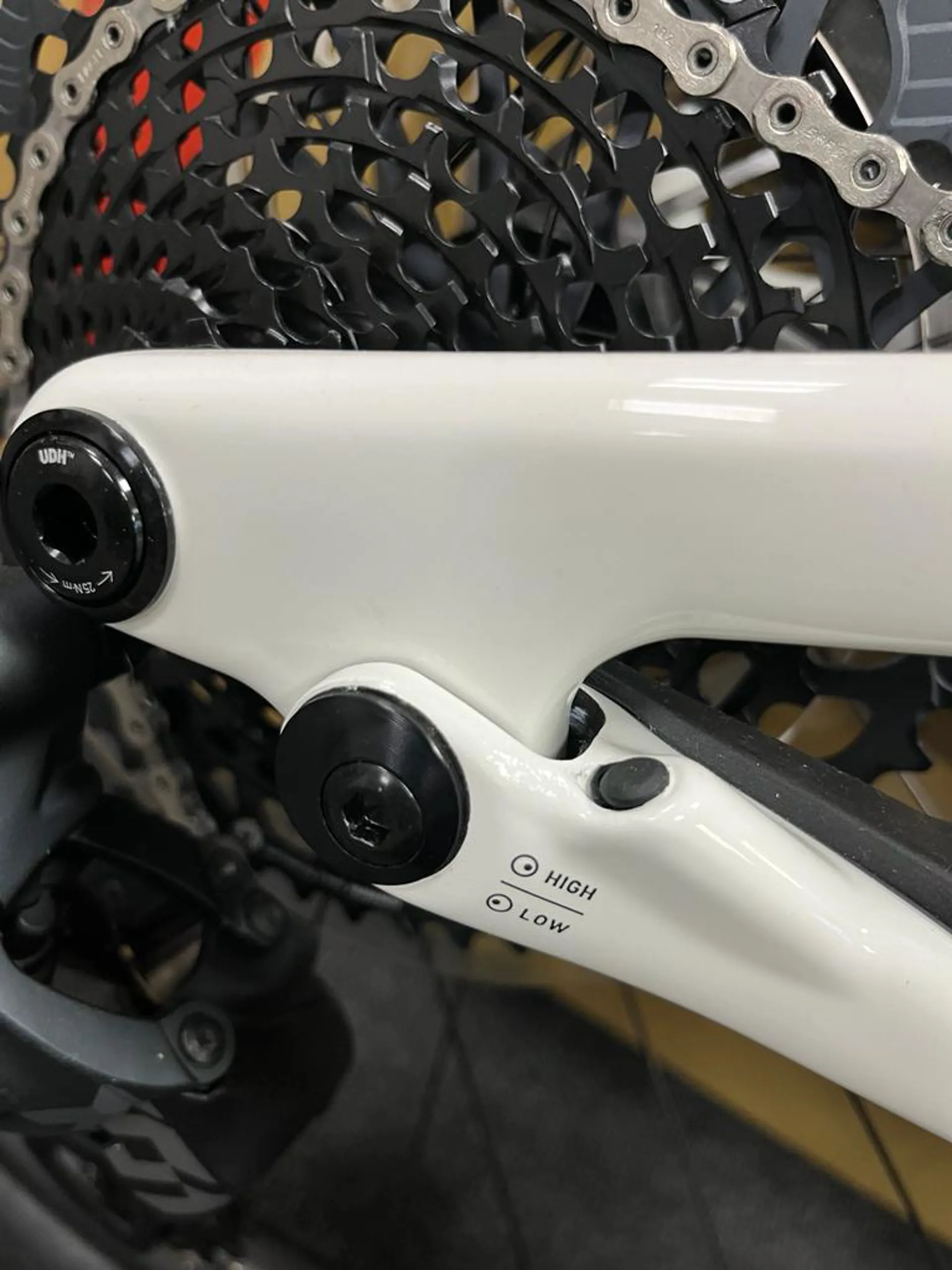

FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5" Trail Geometry, SWAT™ Door integration, head tube angle adjustment, horst pivot BB adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm of travel
rear shock
FOX FLOAT X Factory, Rx Trail Tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment, S1:210x50mm, S2-S6:210x55mm
fork
FOX FLOAT 36 Factory, GRIP2 damper, 15x110mm, 44mm offset, S1: 150mm of travel, S2-S6: 160mm of travel
stem
Deity, 35.0mm
handlebars
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 800mm, 35.0mm
grips
Deity Lockjaw
saddle
Bridge, 155/143mm, Hollow Ti-rails
seatpost
Bike Yoke, Revive Max, 34.9 (S1:120mm, S2-S3:150mm, S4-S5: 185mm, S6: 213mm)
front brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2
rear brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm HS2
rear derailleur
SRAM X01 Eagle AXS
shift levers
SRAM Eagle AXS Rocker Paddle
cassette
SRAM XG-1295 Eagle, 10-52t
chain
SRAM X01 Eagle, 12-speed
crankset
SRAM X1 Carbon, DUB, S1:165mm, S2-S5: 170mm, S6: 175mm
chainrings
32T
bottom bracket
SRAM DUB, BSA 73mm, Threaded
rims
Roval Traverse Carbon 29F/27.5R, hookless carbon, 30mm inner width, hand-built, 2Bliss Ready
front hub
DT Swiss 350, sealed cartridge bearings, 15x110mm spacing, 28h
rear hub
DT Swiss 350, Star Ratchet, 36t engagement, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h
spokes
DT Competition Race
front tyre
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
rear tyre
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5 x 2.3"
inner tubes
Standard, Presta valve
seat binder
Alloy, 38.6mm
weight
13.86kg (30 lb, 8.9 oz)
weight size
S4
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
