The carbon-framed Merida Scultura Road Bike is equipped with a full 24-speed Shimano 105 groupset, featuring Di2 electronic shifting, hydraulic disc brakes, and Continental tyres.
The carbon-framed Merida Scultura Road Bike is equipped with a full 24-speed Shimano 105 groupset, featuring Di2 electronic shifting, hydraulic disc brakes, and Continental tyres.
Merida

2024 Merida Scultura 6000 Road Bike - Team Replica

£2,399.00 £3,300.00 27% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

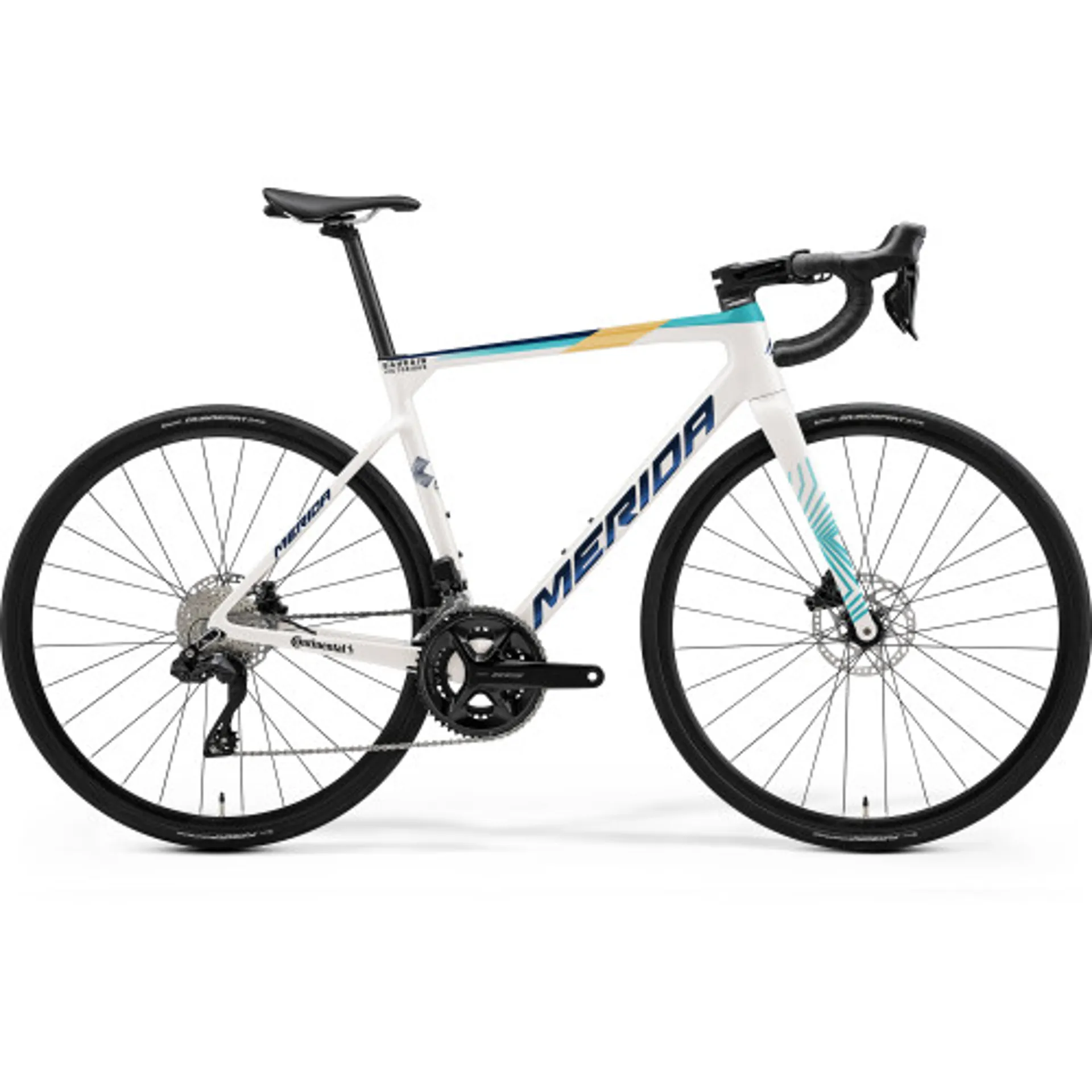

2024 Merida Scultura 6000 Road Bike - Team Replica

Season:2024

Brand:Merida

Code:P-P365

The carbon-framed Merida Scultura Road Bike is equipped with a full 24-speed Shimano 105 groupset, featuring Di2 electronic shifting, hydraulic disc brakes, and Continental tyres. Team Bahrain Victorious rigorously tested the fifth-generation Scultura, securing mountain top stage wins at the Tour de France and Vuelta a España even before its official launch. This iteration retains the Scultura's renowned lightweight, agility, and rider comfort, while integrating aerodynamic insights from the Reacto, sharing its race-proven geometry. The new Scultura excels in weight reduction, comfort, and aerodynamics, offering class-leading rider comfort to keep you fresh for the final sprint or climb. Grand tour stage victories underscore its exceptional performance.

  • Lightweight CF3 Carbon frame with full carbon tapered fork
  • Shimano 105 Di2 2 x 12 drivetrain
  • Shimano 105 chainset
  • Shimano 105 hydraulic disc brakes with Disc Cooler Technology
  • Continental Grand Sport Race 28c tyres
Technical Information
  • FRAME
    CF3 carbon, race geometry. Internal cable routing, 12mm through axles, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Max tyre - 30c
  • FORK
    Scultura CF3 Disc; full carbon; Max tyre size: 700 x 30c; Disc cooler technology
  • GEARS
    24
  • SHIFTERS
    Shimano 105 disc Di2
  • FRONT DERAILLEUR
    Shimano 105 Di2
  • REAR DERAILLEUR
    Shimano 105 Di2
  • BOTTOM BRACKET
    Shimano BB71-41B, Pressfit 86.5
  • CHAIN
    Shimano CN-M6100-12
  • CHAINSET
    Shimano 105; FCR7100, 50-34 tooth chainset. Crank length: 165mm (XXS), 170mm (XS), 172.5mm (S,M), 175mm (L,XL)
  • CASSETTE
    Shimano CS-R7101; 11-34 teeth; 12 speed
  • BRAKE LEVER
    Shimano 105
  • FRONT BRAKE
    Shimano 105 hydraulic disc brake caliper with Shimano RT64 160mm rotor
  • REAR BRAKE
    Shimano 105 hydraulic disc brake caliper with Shimano RT64 160mm rotor
  • GRIPS
    Merida Road Expert
  • HANDLEBAR
    Merida Expert SLII; aluminium; Width 380mm (XXS), 400mm (XS), 420mm (S,M,L), 440mm (XL)
  • STEM
    FSA SMR ACR; aluminium; -6 degree rise. Length 90mm (XXS,XS), 100mm (S), 110mm (M) 120mm (L,XL)
  • HEADSET
    FSA ACR
  • PEDAL
    Not included
  • SADDLE
    Merida Expert SL with V-mount; including Merida minitool
  • SEATPOST
    Merida Expert CC; 27.2mm diameter; 15mm lay back; Carbon
  • WHEEL SIZE
    700c
  • RIMS
    Merida Expert SL; 17mm inner rim width; 22mm rim depth; aluminium
  • SPOKES
    Double Butted Black stainless
  • FRONT HUB
    Joytech D981SB; 100x12mm; 28 spokes; Centerlock with Merida Expert TR axle
  • REAR HUB
    Joytech D872SB; 142x12mm; 28 spokes; Centerlock with Merida Expert SL axle including removable 6/4mm allen key
  • FRONT TYRE
    Continental Grand Sport Race; 700 x 28C; Kevlar bead, folding
  • REAR TYRE
    Continental Grand Sport Race; 700 x 28C; Kevlar bead, folding
  • COLOUR
    Team Replica
  • WEIGHT
    8.34
Sizing Information

SIZING

Size in ft4'11" - 5'2"5'3" - 5'5"5'5" - 5'8"5'9" - 5'11"6'0" - 6'2"6'3" - 6'7"
Size in cm150 - 158cm159 - 165cm166 - 173cm174- 182cm183 - 189cm190 - 200cm
Bike SizeXXSXSSMLXL

GEOMETRY

SculturaXXSXSSMLXL
Seat Tube435mm458mm481mm501mm521mm550mm
Top Tube Horizontal520mm535mm545mm560mm575mm590mm
Head Tube Length105mm112mm128mm140mm155mm176mm
Head Tube Angle70.5°72°72.5°73.5°73.5°74°
Head Tube Angle74.5°74°74°73.5°73°73°
Chain Stays408mm408mm408mm408mm408mm408mm
Bottom Bracket Drop70mm70mm66mm66mm66mm66mm
Fork Length385mm385mm385mm385mm385mm385mm
Standover Height721mm745mm765mm782mm800mm823mm
Stack517mm529mm542mm557mm571mm593mm
Reach377mm384mm390mm395mm400mm409mm
Wheelbase985mm983mm990mm990mm999mm1010mm
