Whether you’re chasing KOMs, tackling grueling climbs, or sprinting to the finish line, the Merida Scultura Team Road Bike offers class-leading performance, proven durability, and an elite riding experience.
Whether you’re chasing KOMs, tackling grueling climbs, or sprinting to the finish line, the Merida Scultura Team Road Bike offers class-leading performance, proven durability, and an elite riding experience.
Merida

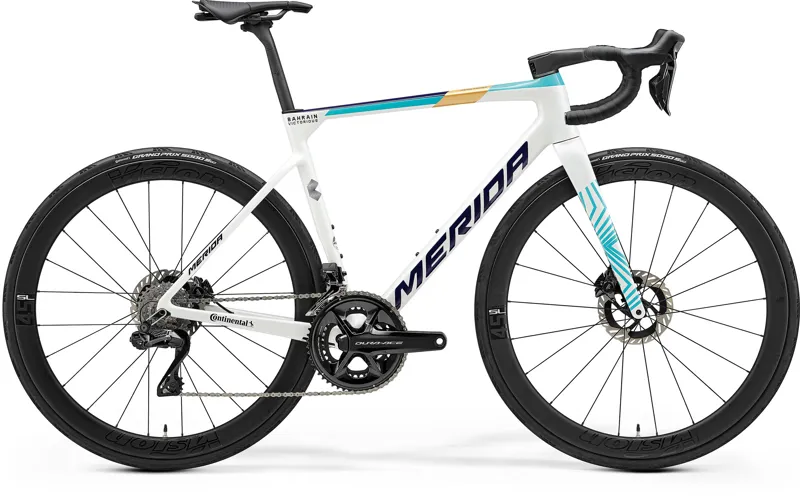

2025 Merida Scultura Team Road Bike - Teal/Pearl

£6,799.00 £8,000.00 15% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2025 Merida Scultura Team Road Bike - Teal/Pearl

Season:2025

Brand:Merida

Code:P-Q190

The Merida Scultura Team Road Bike is a pinnacle of engineering, performance, and comfort, crafted for serious cyclists and race enthusiasts. Featuring the ultralight CF5 carbon frame and fork, the bike delivers exceptional agility, aerodynamics, and rider comfort, ideal for conquering climbs, sprints, and long-distance rides.

  • Superlight CF5 Carbon Frame and Fork: Engineered for unmatched speed, agility, and lightweight performance.
  • Shimano Dura-Ace Di2 Groupset: Includes a power meter for precision training and top-tier gear shifting.
  • Vision Metron 45 SL Carbon Wheelset: Paired with Continental GP5000S TR 28c tyres for superior aerodynamics, rolling resistance, and grip.
  • Integrated Carbon Cockpit: Fully integrated for improved aerodynamics and a sleek design.
  • Merida S-Flex Carbon Seatpost: Designed for enhanced vibration absorption and rider comfort.
  • Disc Cooler Technology: Optimized braking performance for greater control on descents and technical terrain.

Proven ProTour Performance

This is the same race-ready bike used by the Bahrain Victorious ProTour Team, tested and proven in some of the world’s toughest races. The fifth-generation Scultura helped secure mountain-top stage victories in the Tour de France and Vuelta a España even before its official release.

Advanced Engineering for Aerodynamics and Comfort

The Gen 5 Scultura pushes the boundaries of cycling innovation. By incorporating aerodynamics from the Reacto and retaining the Scultura's legendary lightweight design, it achieves a perfect balance of speed and comfort.

  • Aerodynamic Improvements: The most aerodynamic Scultura ever, utilising advanced frame shaping for optimal airflow.
  • Enhanced Comfort: Outstanding compliance with fatter tyres that absorb road vibrations while maintaining performance efficiency.
  • Proven Race Geometry: Shares the same geometry as the Reacto for an uncompromising racing stance.

Whether you’re chasing KOMs, tackling grueling climbs, or sprinting to the finish line, the Merida Scultura Team Road Bike offers class-leading performance, proven durability, and an elite riding experience.

Elevate your cycling game with a bike designed for champions.

Technical Information
  • FRAME
    CF5 V carbon - Premium fibres for lightweight and performance, race geometry. Internal cable routing, 142 x12mm axle standard, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube. Pressfit 86.5 BB Standard, Max tyre size - 30c
  • FORK
    Scultura CF5 Disc; full carbon; Max tyre size: 700 x 30c - Disc cooler technology
  • GEARS
    24
  • SHIFTERS
    Shimano Dura Ace Di2
  • FRONT DERAILLEUR
    Shimano Dura Ace Di2
  • REAR DERAILLEUR
    Shimano Dura Ace Di2
  • BOTTOM BRACKET
    SM-BB92-41B, Pressfit 86.5
  • CHAIN
    Shimano CN-M9100-12
  • CHAINSET
    Shimano Dura Ace; 52-36 tooth chainset; Power Meter; Crank length - 165mm (XXS), 170mm (XS), 172.5mm (S/M/L), 175mm (XL)
  • CASSETTE
    Shimano CS-R9200; 11-30 teeth; 12 speed
  • BRAKE LEVER
    Shimano Dura Ace
  • FRONT BRAKE
    Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
  • REAR BRAKE
    Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
  • GRIPS
    Prologo One-Touch
  • HANDLEBAR
    Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL)
  • STEM
    Team One-Piece Integrated; carbon - Length - 90mm (XXS-XS), 100mm (S), 110mm (M-L), 120mm (XL)
  • HEADSET
    Merida Team SL (OP-203 neck)
  • SADDLE
    Scratch M5 with V-mount adapter; includes Merida minitool
  • SEATPOST
    Merida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex
  • WHEEL SIZE
    700c
  • RIMS
    Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 18mm inner rim width; 45 mm rim depth; carbon; Tubeless ready (tubeless tape and valves included)
  • SPOKES
    Part of wheelset
  • FRONT HUB
    Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 100 x 12mm; Centerlock
  • REAR HUB
    Part of wheelset - Vision Metron 45 SL Clincher TL Disc; 142 x 12mm; Centerlock
  • FRONT TYRE
    Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
  • REAR TYRE
    Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

SIZING

Size in ft4'11" - 5'2"5'3" - 5'5"5'5" - 5'8"5'9" - 5'11"6'0" - 6'2"6'3" - 6'7"
Size in cm150 - 158cm159 - 165cm166 - 173cm174- 182cm183 - 189cm190 - 200cm
Bike SizeXXSXSSMLXL

GEOMETRY

SculturaXXSXSSMLXL
Seat Tube435mm458mm481mm501mm521mm550mm
Top Tube Horizontal520mm535mm545mm560mm575mm590mm
Head Tube Length105mm112mm128mm140mm155mm176mm
Head Tube Angle70.5°72°72.5°73.5°73.5°74°
Head Tube Angle74.5°74°74°73.5°73°73°
Chain Stays408mm408mm408mm408mm408mm408mm
Bottom Bracket Drop70mm70mm66mm66mm66mm66mm
Fork Length385mm385mm385mm385mm385mm385mm
Standover Height721mm745mm765mm782mm800mm823mm
Stack517mm529mm542mm557mm571mm593mm
Reach377mm384mm390mm395mm400mm409mm
Wheelbase985mm983mm990mm990mm999mm1010mm
