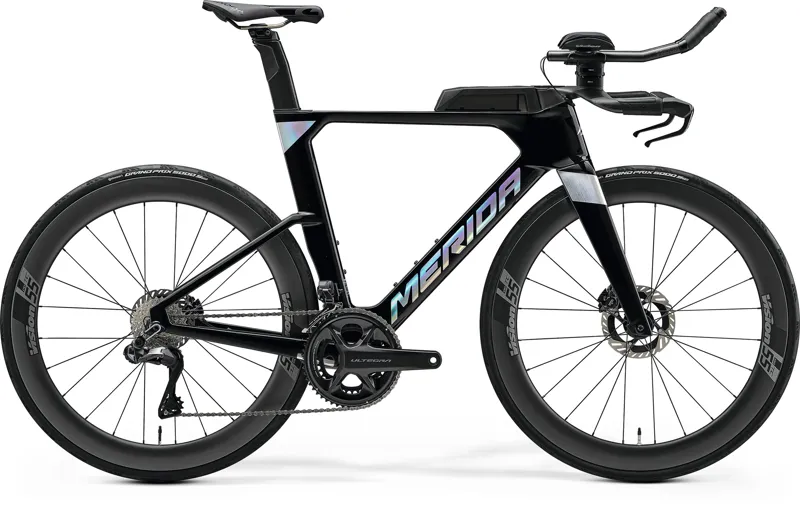

2025 Merida Time Warp Tri Limited Triathlon Bike - Black - Size Medium

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2025 Merida Time Warp Tri Limited Triathlon Bike - Black - Size Medium

Season:2025

Brand:Merida

Code:P-Q265

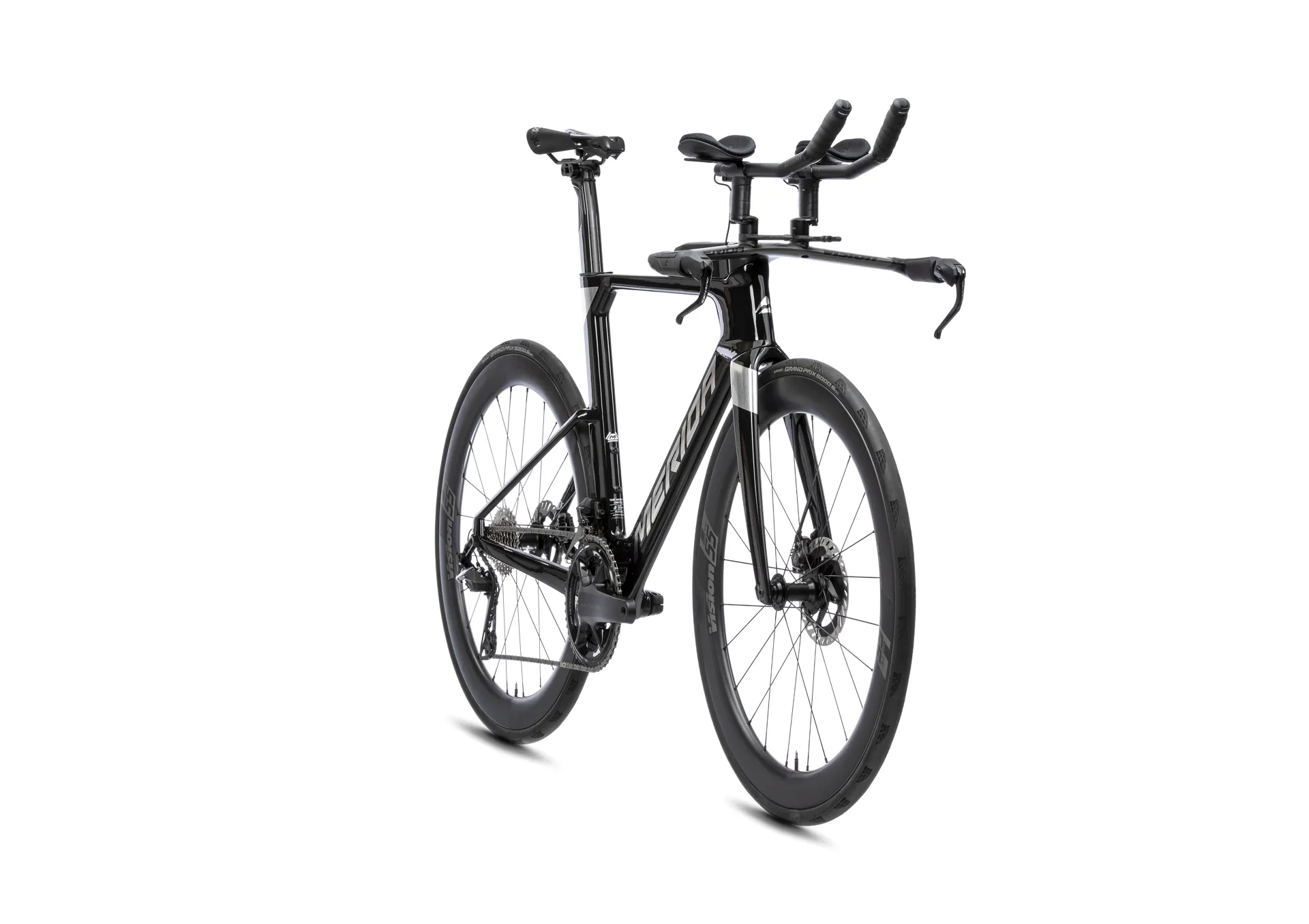

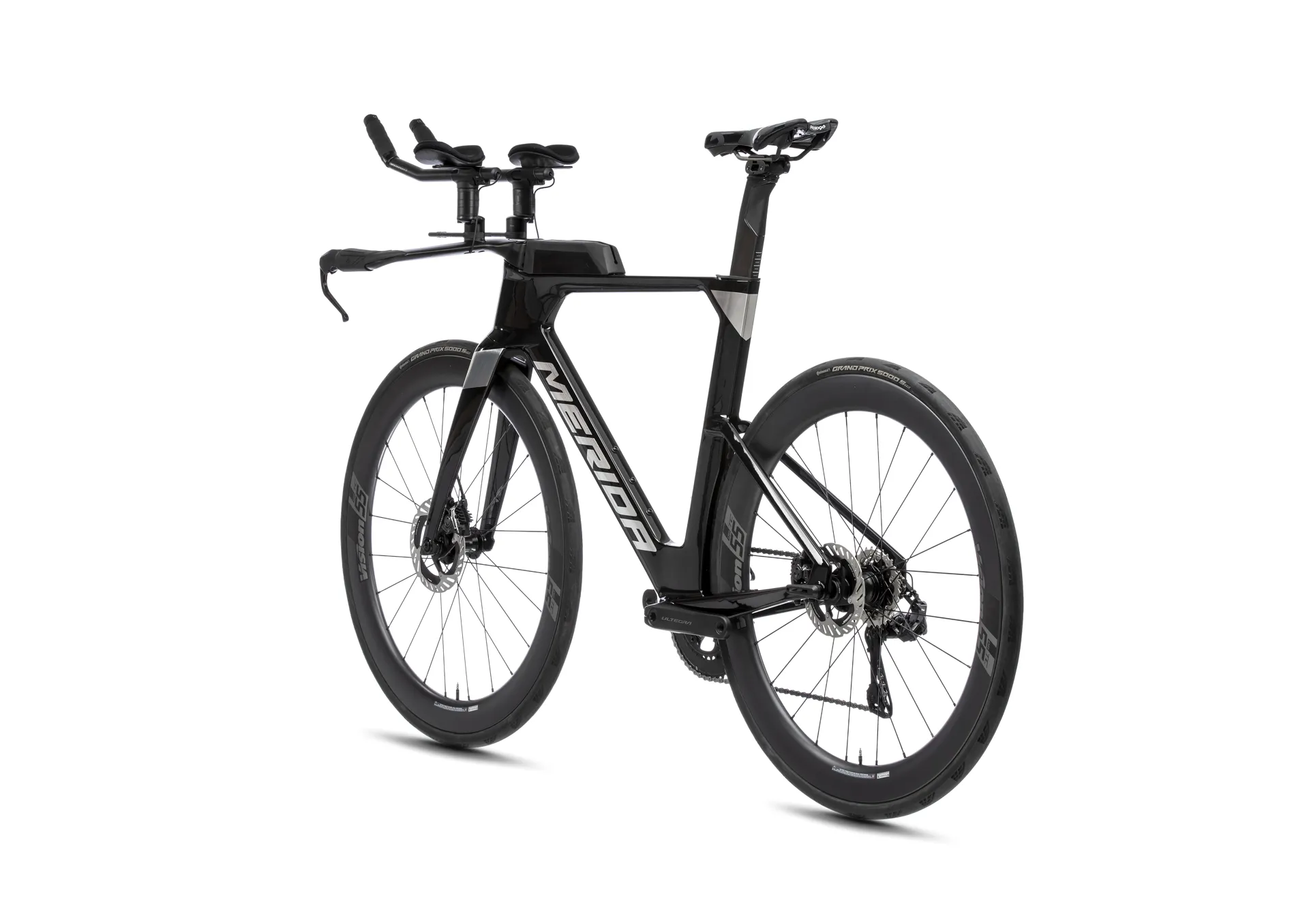

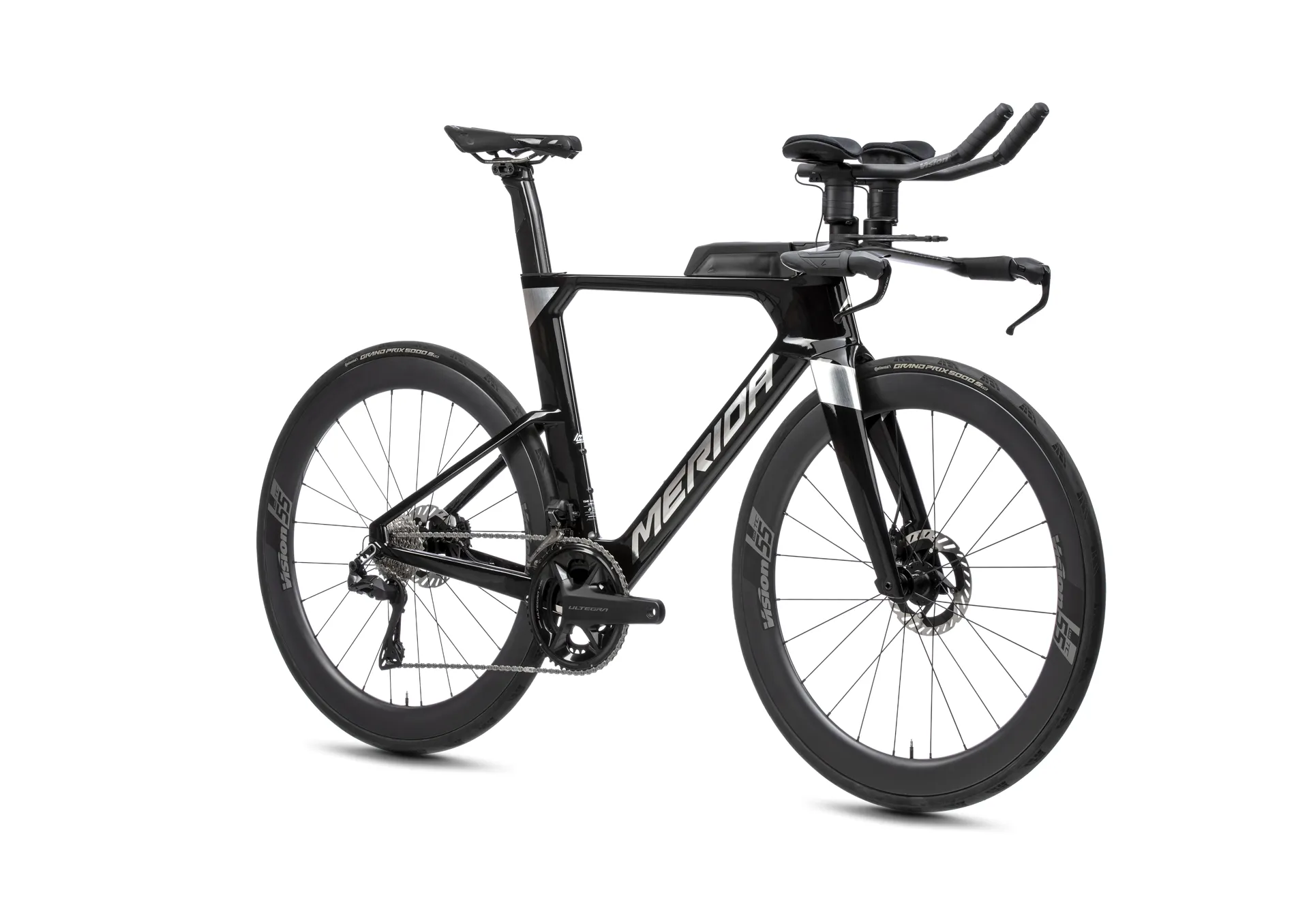

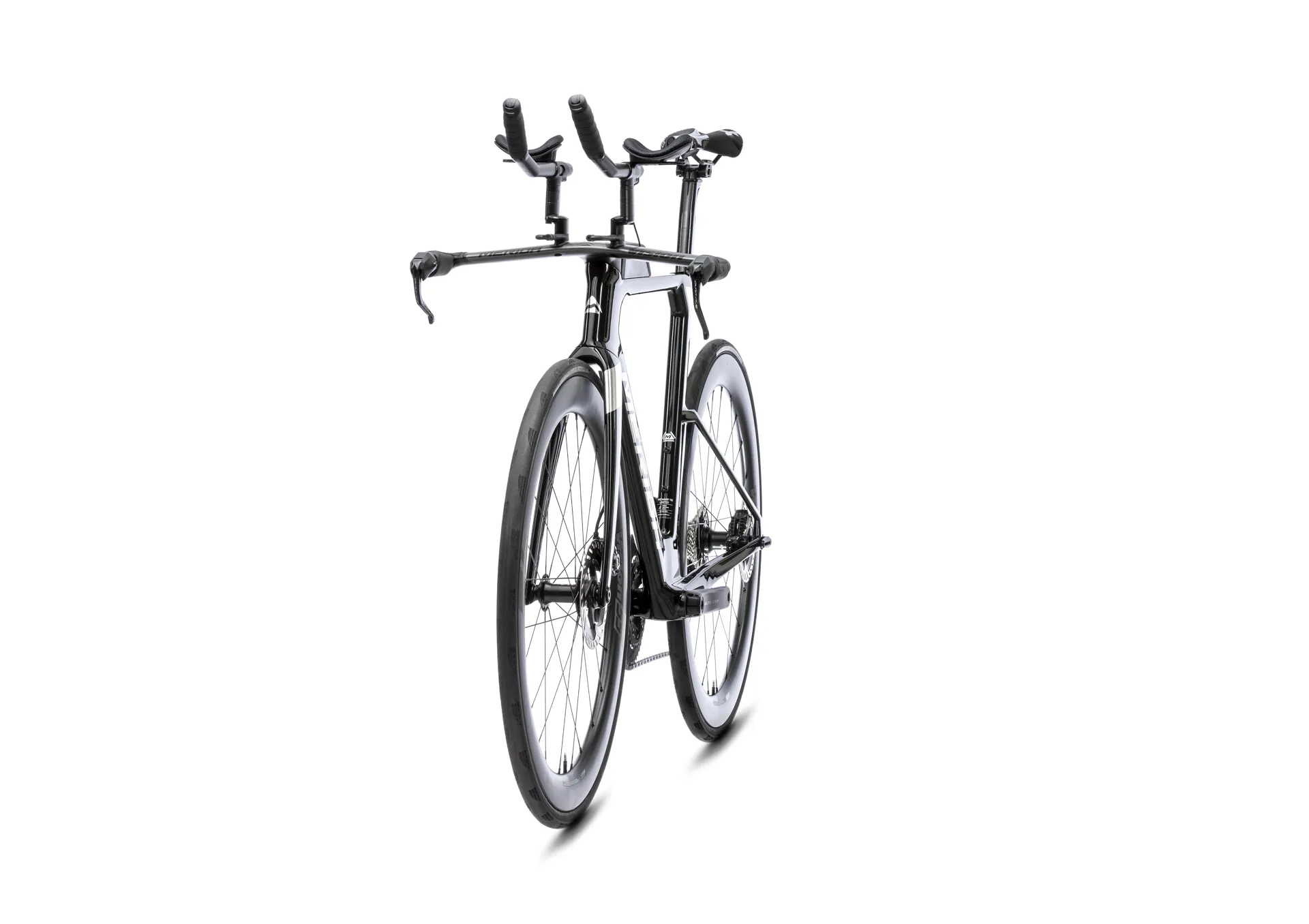

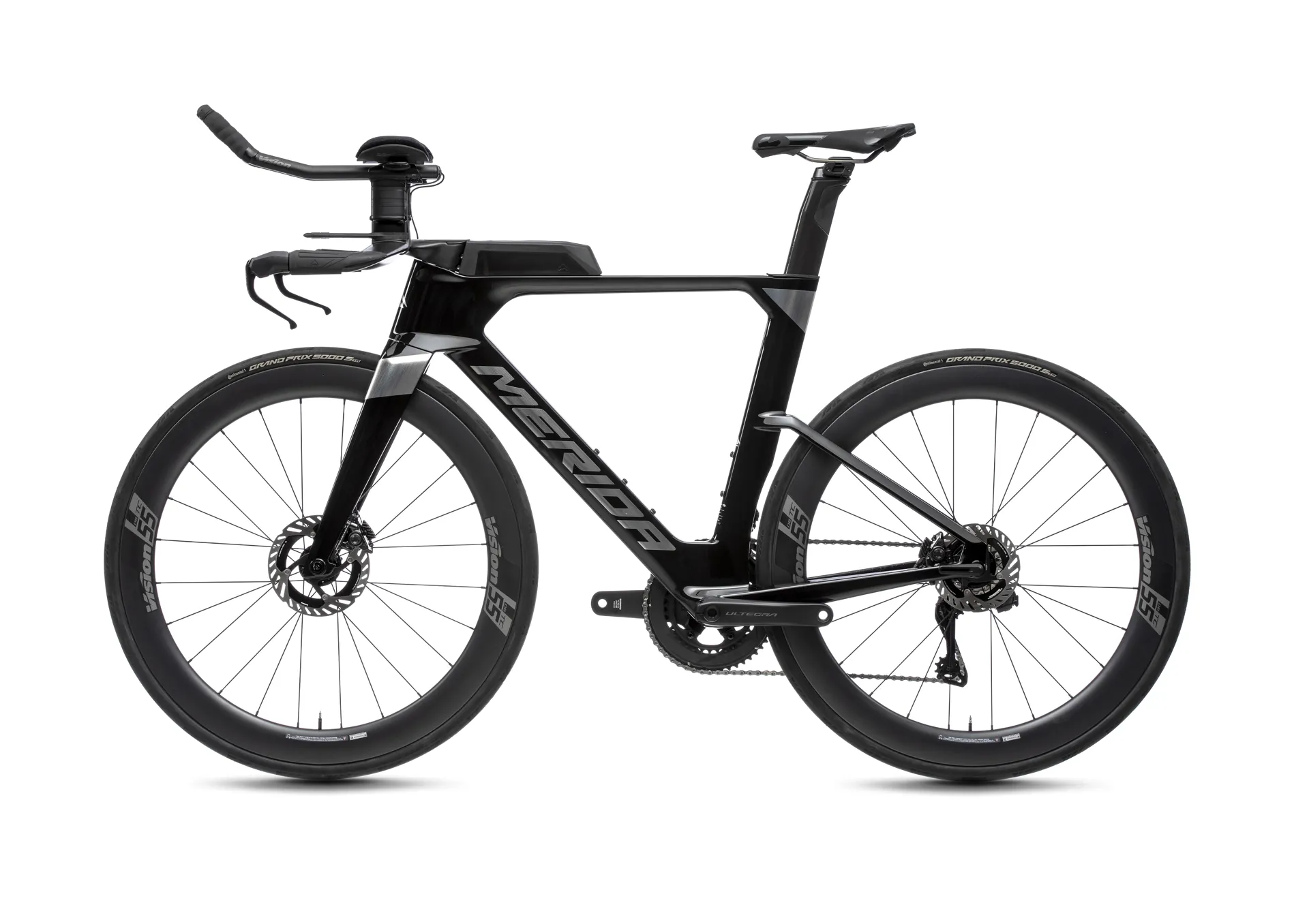

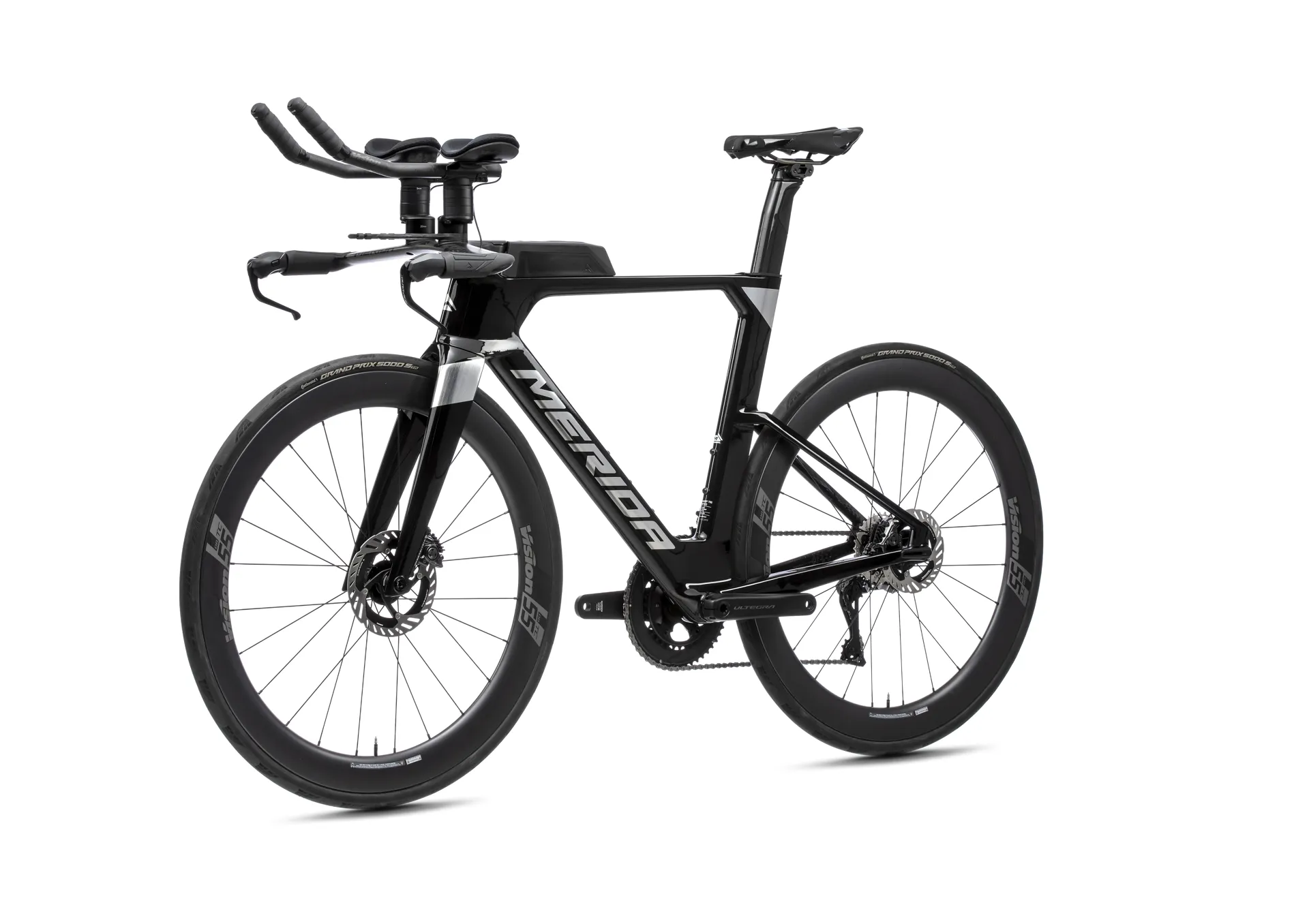

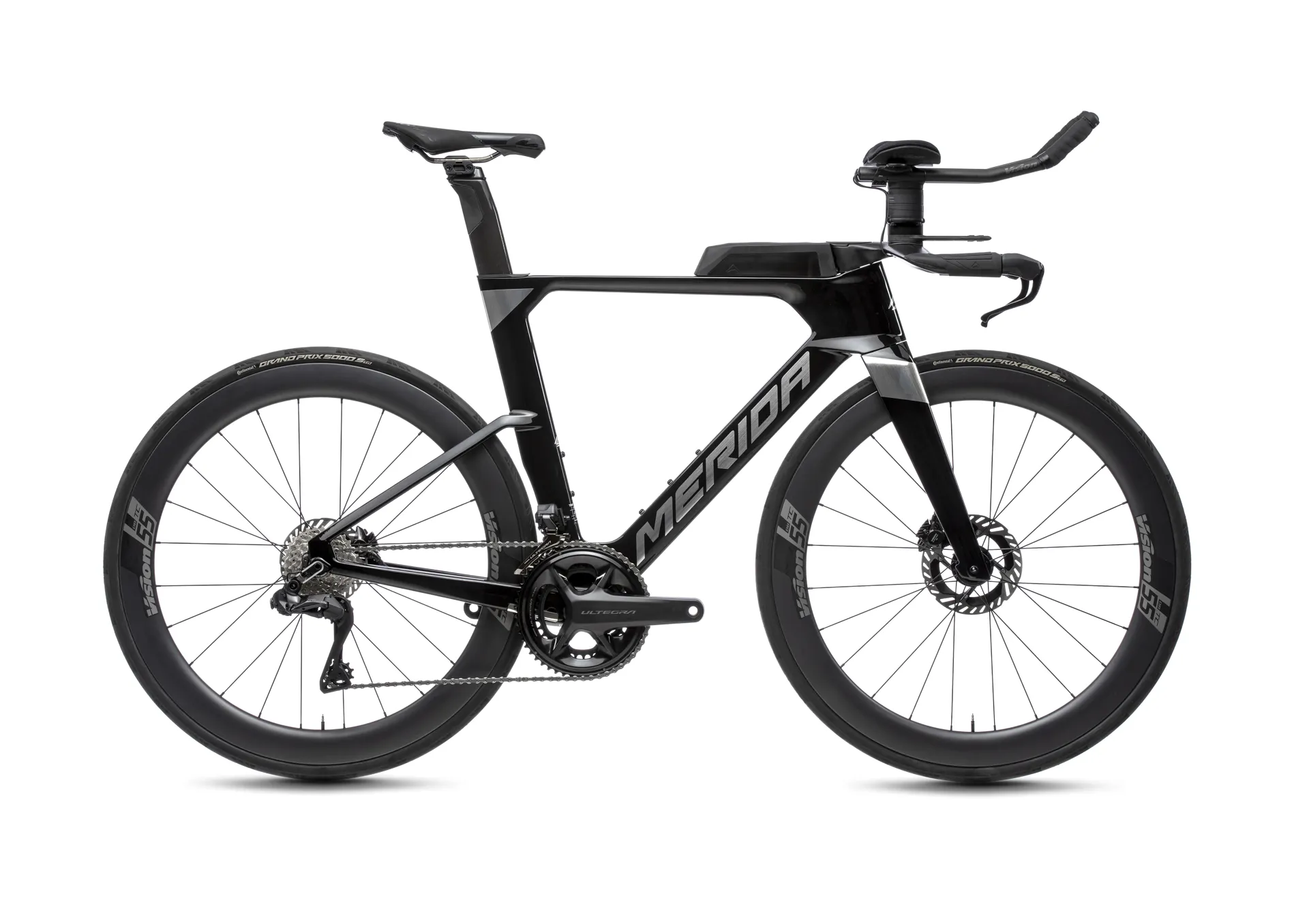

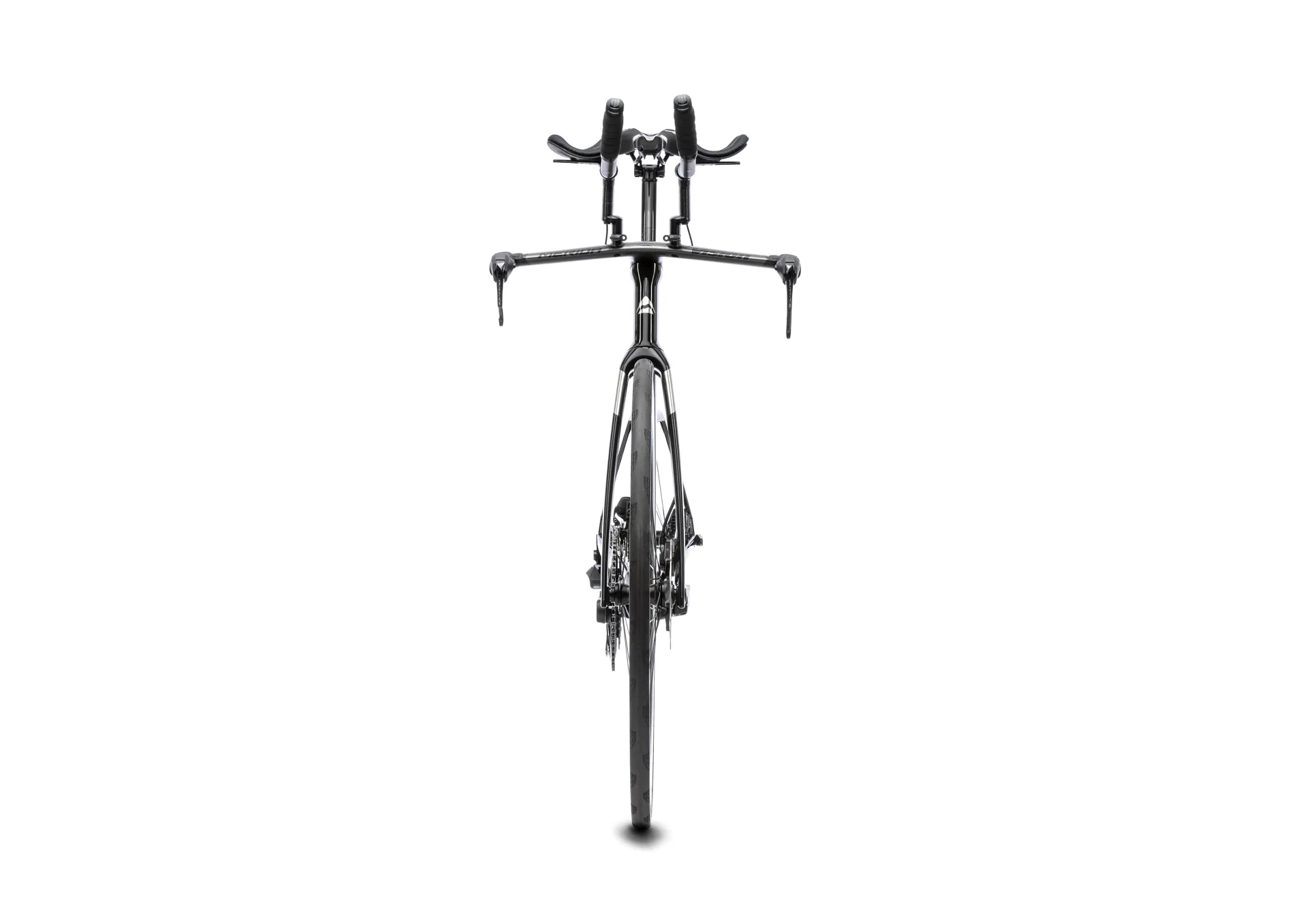

Merida Time Warp Tri Limited Triathlon Bike – Ultra-Lightweight, Aero Performance for Triathletes

The Merida Time Warp Tri Limited triathlon bike is engineered for speed, comfort, and precision, making it the ultimate choice for competitive triathletes. Featuring a super-light CF5 carbon frame and fork, Shimano Ultegra 2x12 Di2 drivetrain, and Vision Metron TC 55 carbon wheelset, this bike delivers exceptional aero performance, control, and comfort over both short and long-course triathlons.

CF5 Carbon Frame and Fork: The CF5 carbon frame is designed for optimal aero performance, providing a lightweight and responsive ride. It’s engineered to minimise drag while offering incredible stiffness and comfort, perfect for long-distance triathlons and time trials.

Shimano Ultegra 2x12 Di2 Drivetrain: Equipped with the precision and reliability of a Shimano Ultegra 2x12 Di2 electronic drivetrain, this bike offers smooth, fast shifting, ensuring you stay in control and perform at your best, whether climbing hills or powering through flat sections.

Vision Metron TC 55 Carbon Wheelset: The Vision Metron TC 55 carbon wheels are designed for aero efficiency and low weight, allowing you to maintain speed and power throughout your race. The 55mm depth helps reduce wind resistance, giving you a competitive edge in every segment of your triathlon.

Shimano Dura-Ace Hydraulic Disc Brakes: With Shimano Dura-Ace hydraulic disc brakes, the Merida Time Warp Tri Limited offers superior braking power and control, even in challenging conditions or during high-speed descents.

Triathlon-Specific Design: This bike is built for the unique demands of triathlon racing. It combines aero optimisation with comfort for long-distance efficiency, inspired by the lessons learnt from Pro Tour time trial bikes. The bike is designed to excel in both speed and comfort, helping you perform at your peak across all triathlon distances.

Vision Metron S-Bend Cockpit: The Vision Metron S-Bend cockpit allows for multiple position adjustments, ensuring an ergonomic fit and ideal riding position for maximum comfort and aero efficiency. Whether you're tackling a sprint triathlon or an Ironman, this cockpit system helps you maintain control and stability, even on demanding courses.

  • Super-light CF5 Carbon Frame for ultimate speed and efficiency.
  • Shimano Ultegra 2x12 Di2 electronic shifting for precise and smooth gear changes.
  • Vision Metron TC 55 wheels for low drag and high performance.
  • Shimano Dura-Ace hydraulic disc brakes for exceptional braking control.
  • Triathlon-specific design focused on comfort, aero efficiency, and performance.
  • Adjustable Vision Metron S-Bend cockpit for a customisable riding position.

The Merida Time Warp Tri Limited triathlon bike is a passion project from Merida's legendary R&D Chief, Juergen Falke, a seasoned Ironman competitor who combined years of experience and aerodynamic research to create the ultimate triathlon bike. Designed with attention to comfort, efficiency, and aero performance, the Time Warp Tri is built to dominate every race.

Performance, Comfort, and Aero Efficiency: The Perfect Triathlon Bike

For triathletes who demand nothing less than the best, the Merida Time Warp Tri Limited offers superior performance in every aspect. With its CF5 carbon frame, Ultegra Di2 drivetrain, and Vision Metron carbon wheels, this bike is engineered to help you achieve your personal best, whether in training or during race day.

Technical Information
  • Frame
    CF5 IV carbon - Premium fibres for lightweight and performance, Internal cable routing, 142 x12mm axle standard, flat mount rear brakes, Pressfit 86.5 BB Standard, Max tyre size - 30c
  • Fork
    Time-Warp Tri CF5 IV; Full carbon, tapered steerer, Max tyre size: 700 x 30c
  • Gears
    24
  • Shifters
    Shimano ST-R9180
  • Front Derailleur
    Shimano Ultegra Di2; FD-R8150
  • Rear Derailleur
    Shimano Ultegra Di2; RD-R8150
  • Bottom Bracket
    SM-BB72-41B, Pressfit 86.5
  • Chain
    Shimano CN-M8100-12
  • Chainset
    Shimano Ultegra; 52-36 tooth chainset; Crank length - 170mm (XS), 172.5mm (S/M), 175mm (L)
  • Cassette
    Shimano CS-R8101; 11-30 teeth; 12 speed
  • Brake Lever
    Shimano Dura Ace
  • Front Brake
    Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 160mm rotor
  • Rear Brake
    Shimano Dura Ace; Hydraulic disc brake caliper with Shimano CL900; 140mm rotor
  • Grips
    Merida Expert
  • Handlebar
    Merida Metron TT; carbon
  • Stem
    Merida Metron TT; carbon; -17 degree rise
  • Headset
    Meida TIME WARP TT
  • Saddle
    Prologo Zero Tri PAS Tirox
  • Seatpost
    Merida Team TT II; Aero shape; Carbon
  • Wheel Size
    700c
  • Rims
    Part of wheelset - Vision TC55; 19mm inner rim width; 55mm rim depth; carbon; Tubeless ready (tubeless tape and valves not included)
  • Spokes
    Part of wheelset
  • Front Hub
    Part of wheelset - Vision TC55; 100 x 12mm; Centerlock
  • Rear Hub
    Part of wheelset - Vision TC55; 142 x 12mm; Centerlock
  • Front Tyre
    Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
  • Rear Tyre
    Continental Grand Prix 5000S TR; 700 x 28C; Kevlar bead; tubeless ready
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information

GEOMETRY

Time Warp Tri - CF5XSSML
Seat Tubes460mm500mm540mm580mm
Top Tube Horizontal490mm510mm550mm570mm
Head Tube Length110mm130mm130mm173mm
Head Tube Angle71°72°72°72°
Seat Tube Angle77°76°76°76°
Chainstays415mm415mm415mm415mm
Bottom Bracket Drop55mm55mm70mm70mm
Fork Length371mm371mm371mm371mm
Reach376mm381mm417mm427mm
Stack496mm518mm533mm574mm
Standover Height752mm781mm799mm838mm
Wheelbase984mm988mm1022mm1045mm
