Specialized S194200008 Service Part
Specialized S194200008 Service Part
Specialized

Specialized S194200008 MY19-21 Levo FSR Gen2 Suspension Pivot Bolt Kit

£94.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S194200008 MY19-21 Levo FSR Gen2 Suspension Pivot Bolt Kit

Brand:Specialized

Code:S194200008

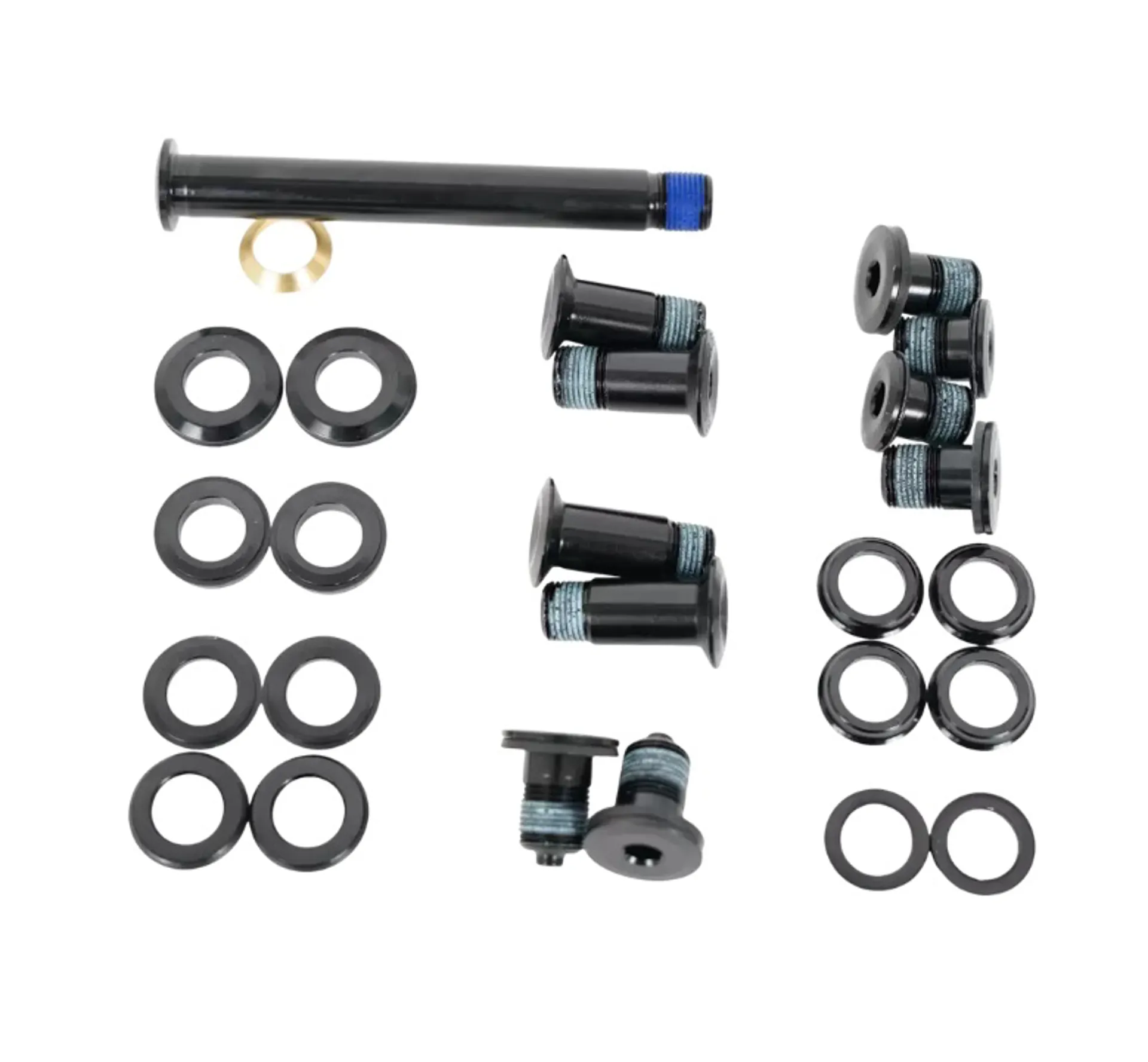

Specialized S194200008 MY19-21 Levo FSR Gen2 Suspension Pivot Bolt Kit with Pivot Spacers

Suspension pivot bolt kit for 2019 - 2021 Levo FSR (Gen.2) bikes with all bolts and spacers

  • Main Pivot (Chainstay) Axle: 12mm W x 104mm L - Alloy - Torque: 160 in-lbf (18 Nm) - 1 pcs.
  • Seatstay Horst Pivot Bolt: 12mm W x 30mm L - Alloy - Torque: 180 in-lbf (20.3 Nm) - 2 pcs.
  • Shock Link to Seat Tube Pivot Bolt: 12mm W x 17mm L - Alloy - Torque: 180 in-lbf (20.3 Nm) - 2 pcs.
  • Shock Link to Shock Extension Pivot Bolt: 12mm W x 14mm L - Alloy - Torque: 180 in-lbf (20.3 Nm) - 2 pcs.
  • Shock Link to Seatstay Pivot Bolt: 12mm W x 30mm L - Alloy - Torque: 180 in-lbf (20.3 Nm) - 2 pcs.
  • Main Pivot (Chainstay) Spacer: 23.5mm OD x 12.1mm ID x 3.57 W - Alloy - 2 pcs.
  • Seatstay Horst Pivot Inner Spacer: 21mm OD x 12mm ID x 2.5mm W - Alloy - 4 pcs.
  • Seatstay Horst Pivot Outer Spacer: 21mm OD x 12mm ID x 2mm W - Alloy - 2 pcs.
  • Shock Link to Seat Tube Pivot Spacer: 19.5mm OD x 12.1mm ID x 3mm W - Alloy - 2 pcs.
  • Shock Link to Seatstay Pivot Outer Spacer: 21mm OD x 12.1mm ID x 4.5mm W - Alloy - 2 pcs.

Used on:

  • 2021 LEVO 29
  • 2021 LEVO 29 NB
  • 2021 LEVO COMP 29
  • 2021 LEVO COMP 29 NB
  • 2021 LEVO COMP CARBON 29
  • 2021 LEVO COMP CARBON 29 NB
  • 2021 LEVO EXPERT CARBON 29
  • 2021 LEVO EXPERT CARBON 29 NB
  • 2021 LEVO SW CARBON 29
  • 2021 LEVO SW CARBON 29 NB
  • 2020 LEVO 29
  • 2020 LEVO 29 NB
  • 2020 LEVO COMP 29
  • 2020 LEVO COMP 29 NB
  • 2020 LEVO COMP CARBON 29
  • 2020 LEVO EXPERT CARBON 29
  • 2020 LEVO EXPERT CARBON 29 NB
  • 2020 LEVO SW CARBON 29
  • 2020 LEVO SW CARBON 29 NB
  • 2020 LEVO SW FRMSET
  • 2020 LEVO SW FRMSET NB
  • 2019 LEVO MEN 29
  • 2019 LEVO MEN 29 NB
  • 2019 LEVO MEN COMP 29
  • 2019 LEVO MEN COMP 29 NB
  • 2019 LEVO MEN COMP CARBON 29
  • 2019 LEVO MEN COMP CARBON 29 NB
  • 2019 LEVO MEN EXPERT CARBON 29
  • 2019 LEVO MEN EXPERT CARBON 29 NB
  • 2019 LEVO MEN SW CARBON 29
  • 2019 LEVO MEN SW CARBON 29 NB
  • 2019 LEVO WMN 29
  • 2019 LEVO WMN 29 NB
  • 2019 LEVO WMN COMP 29
  • 2019 LEVO WMN COMP 29 NB
