Specialized S210500019 Service Part
Specialized S210500019 Service Part
Specialized

Specialized S210500019 MY23 Levo SL Gen 2 Carbon Frame Pivot Bolt Kit

£79.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S210500019 MY23 Levo SL Gen 2 Carbon Frame Pivot Bolt Kit

Brand:Specialized

Code:S210500019

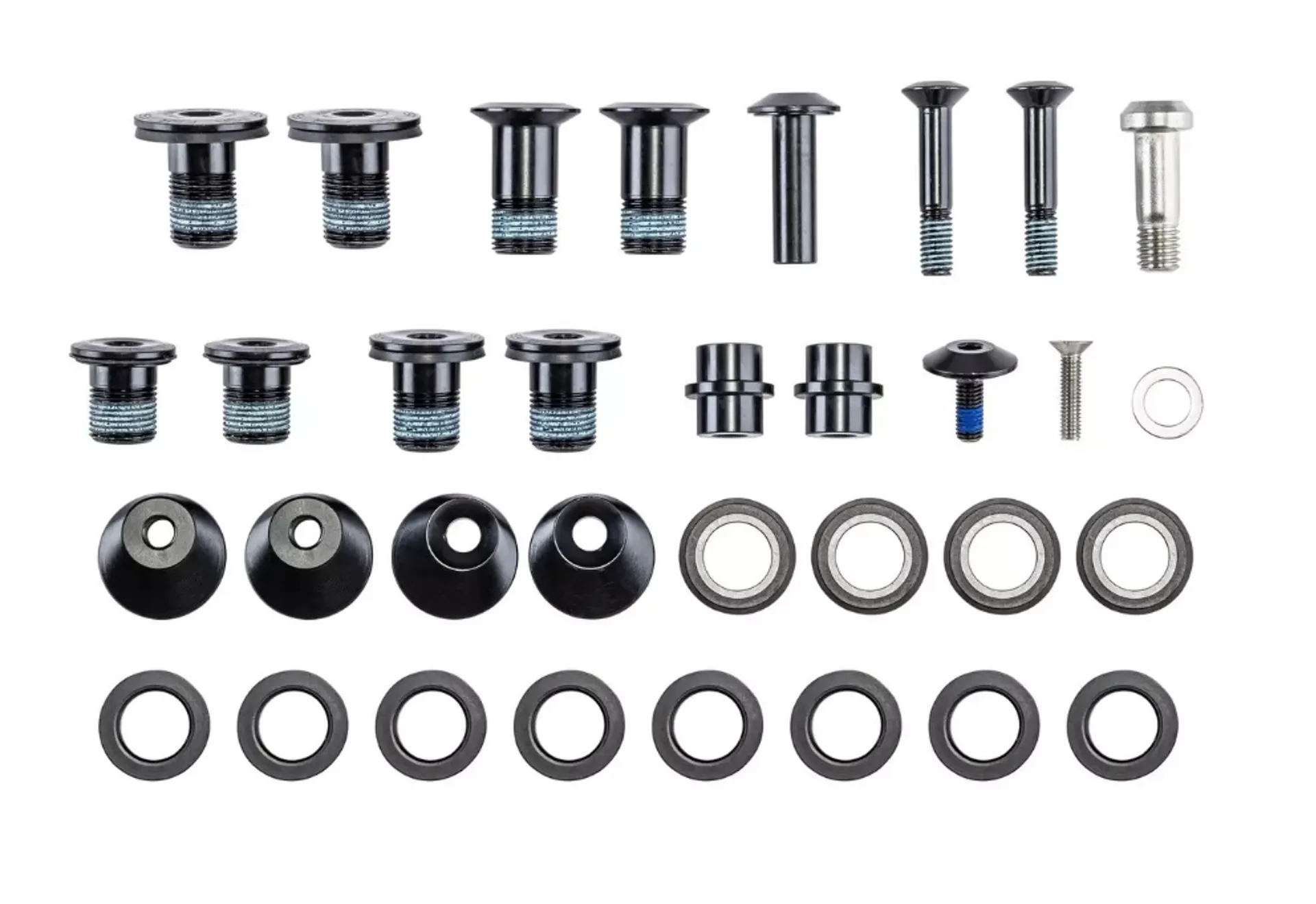

Specialized S210500019 MY23 Levo SL Gen 2 Carbon Frame Suspension Pivot Bolt Kit with Pivot Spacers

  • Suspension pivot bolt kit for 2023 Levo SL (Gen.2) Carbon bikes with all bolts and spacers
  • Main Pivot Bolt Driveside: Reverse Thread - 12mm W x 20mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
  • Main Pivot Bolt Non-Driveside: 12mm W x 20mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 1 pcs.
  • Shock Link to Seat Tube Pivot Bolt: 12mm x 17mm L - Alloy - Torque: 180 in-lbf (20 Nm) - 2 pcs.
  • Shock Link to Shock Extension Pivot Bolt: 12mm W x 14mm L - Alloy - Torque: 210 in-lbf (24 Nm) - 2 pcs.
  • Shock Link to Seatstay Pivot Bolt: 12mm x 27mm - Alloy - Torque: 180 in-lbf (20 Nm) - 2 pcs.
  • Horst Link Pivot Bolt: 6mm W x 32mm L - Steel - Torque: 90 in-lbf (10 Nm) - 2 pcs.
  • Forward Shock Eye Axle: 8mm W x 26.5mm L - Steel - 1 pcs.
  • Forward Shock Eye Bolt: 8mm W (M5 Thread) x 11mm L - Steel - Torque: 49 in-lbf (5.5 Nm) - 1 pcs.
  • Rear Shock Eye Bolt: 8mm W x 28mm L - Steel - Torque 180 in-lbf (20 Nm) - 1 pcs.
  • This kit also includes Geo Adjust Flip Chip and all Spacers.

Used on:

  • 2024 LEVO SL COMP CARBON
  • 2024 LEVO SL COMP CARBON BRA
  • 2024 LEVO SL EXPERT CARBON
  • 2024 LEVO SL EXPERT CARBON BRA
  • 2024 LEVO SL PRO CARBON
  • 2024 LEVO SL SW CARBON
  • 2023 LEVO SL COMP CARBON
  • 2023 LEVO SL COMP CARBON BRA
  • 2023 LEVO SL EXPERT CARBON
  • 2023 LEVO SL EXPERT CARBON BRA
  • 2023 LEVO SL PRO CARBON
  • 2023 LEVO SL SW CARBON
  • 2023 LEVO SL SW CARBON BRA
  • 2023 LEVO SL SW CARBON FRMSET
  • 2023 LEVO SL SW LTD
  • 2022 LEVO SL SW CARBON - WF
  • 2022 LEVO SL SW CARBON FRMSET
  • 2022 LEVO SL SW LTD
