Specialized S240500004 Service Part
Specialized S240500004 Service Part
Specialized

Specialized S240500004 MY22 Levo FSR Gen 3 Motor Mounting Hardware Kit V2

£54.90
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Specialized S240500004 MY22 Levo FSR Gen 3 Motor Mounting Hardware Kit V2

Season:2024

Brand:Specialized

Code:S240500004

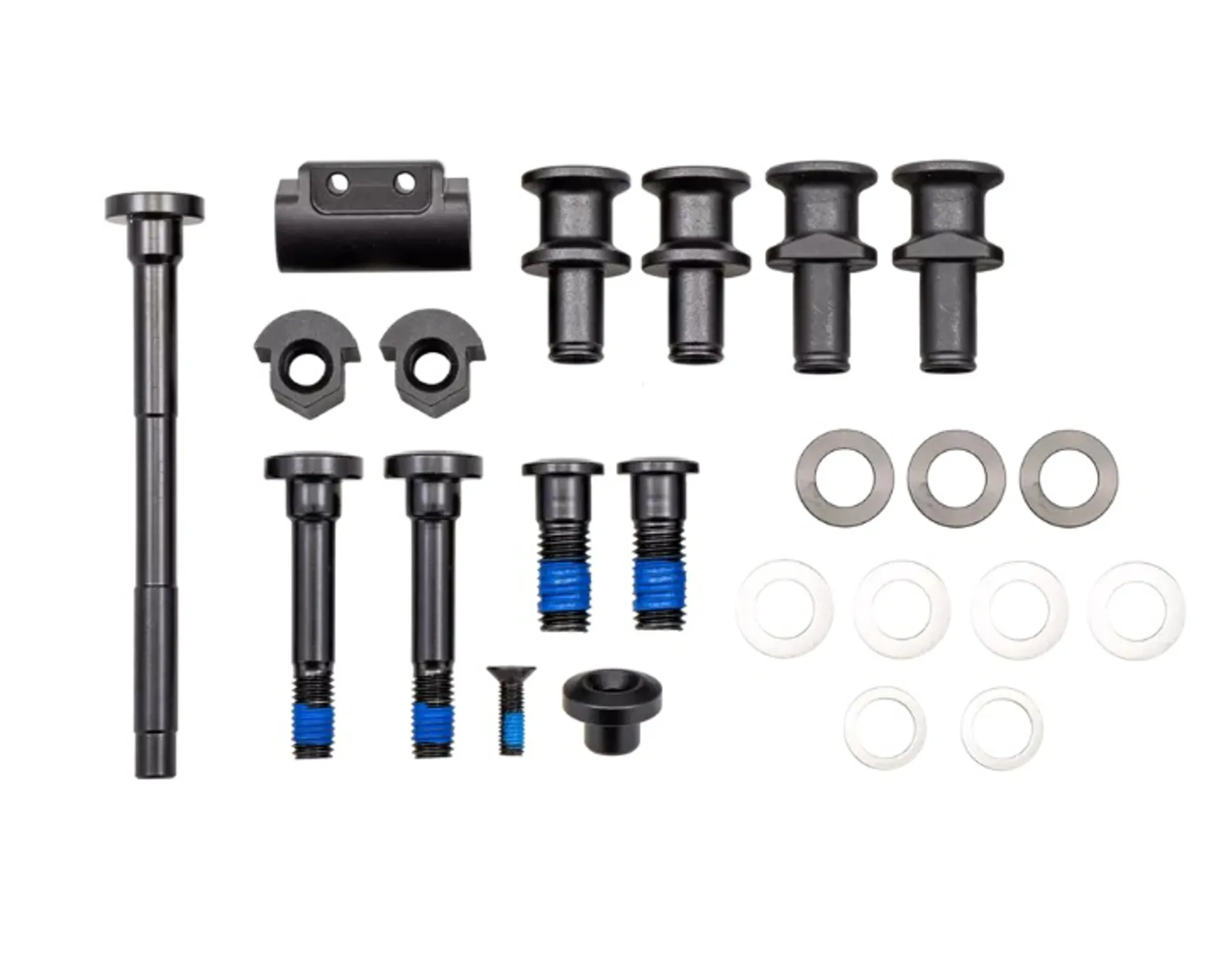

Specialized S240500004 MY22 Levo FSR Gen 3 Motor Mounting Hardware Kit V2

Motor mounting hardware kit with all bolts, washers, and spacers required for both Alloy and Carbon frame Gen.3 Levo bikes. This newer kit includes three 1.5mm thick alloy washers required for Alloy frame bikes that were not included in the original hardware kit S210500010. It will be normal to have three left over washers after using this kit: Alloy frames - you will have Qty 3 of the 18mm OD x 10.5mm OD x 0.2mm Thick washers left over. Carbon frames - you will have Qty 3 of the 18mm OD x 10.5mm OD x 1.5mm Thick washers left over.

  • Rear Mounting Bolts (Qty 2): M10x1.5Px28mm Length
  • Rear Mounting Bolt Washers (Qty 2): 15mm OD x 10.6mm ID x 0.2mm Thick
  • Centre Mounting Bolts (Qty 2): M8x1.25Px50mm Length
  • Centre Mounting Wedge Nuts (Qty 2): M8x1.25P
  • Centre Mounting Frame Spacers: 20mm OD x 8.2mm ID x 17.6mm Length
  • Driveside Forward Axle Bolt (Qty 1): M5x0.8Px16mm Length
  • Driveside Forward Axle Spacer (Qty 1): 10.2mm OD x 7.4mm ID x 12.5mm Thick
  • Non-Driveside Forward Mounting Axle (Qty 1): M8x100mm Length
  • Forward Mounting Frame Spacers (Qty 2): 20mm OD x 8.2mm ID x 17.6mm Length
  • Forward Mounting Wedge (Qty 1): 35mm Width with M4x0.7P Threads

Used on:

  • 2025 Turbo Levo Comp Carbon
  • 2025 Turbo Levo Comp Carbon
  • 2025 Turbo Levo Comp Carbon
  • 2025 Turbo Levo Expert T-Type
  • 2024 LEVO ALLOY G3
  • 2024 LEVO ALLOY G3 BRA
  • 2024 LEVO ALLOY G3 NB
  • 2024 LEVO ALLOY G3 UL
  • 2024 LEVO ALLOY LTD
  • 2024 LEVO ALLOY LTD NB
  • 2024 LEVO ALLOY LTD UL
  • 2024 LEVO COMP ALLOY G3
  • 2024 LEVO COMP ALLOY G3 BRA
  • 2024 LEVO COMP ALLOY G3 NB
  • 2024 LEVO COMP ALLOY G3 UL
  • 2024 LEVO LTD I NB
  • 2024 LEVO LTD II NB
  • 2024 LEVO LTD III NB
  • 2024 Levo I
  • 2024 Levo II
  • 2024 Levo III
  • 2023 LEVO ALLOY
  • 2023 LEVO ALLOY BRA
  • 2023 LEVO ALLOY NB
  • 2023 LEVO ALLOY UL
  • 2023 LEVO CARBON
  • 2023 LEVO CARBON NB
  • 2023 LEVO COMP ALLOY
  • 2023 LEVO COMP ALLOY BRA
  • 2023 LEVO COMP ALLOY NB
  • 2023 LEVO COMP CARBON
  • 2023 LEVO COMP CARBON BRA
  • 2023 LEVO COMP CARBON NB
  • 2023 LEVO EXPERT CARBON
  • 2023 LEVO EXPERT CARBON G3 UL
  • 2023 LEVO EXPERT CARBON NB
  • 2023 LEVO PRO CARBON
  • 2023 LEVO PRO CARBON - WF
  • 2023 LEVO PRO CARBON NB
  • 2023 LEVO PRO CARBON UL
  • 2023 LEVO SW - WF
  • 2023 LEVO SW CARBON
  • 2023 LEVO SW CARBON BRA
  • 2023 LEVO SW CARBON G3 UL
  • 2023 LEVO SW CARBON NB
  • 2023 S-Works Turbo Levo Frameset
  • 2023 S-Works Turbo Levo Frameset
  • 2023 S-Works Turbo Levo T-Type
  • 2023 S-Works Turbo Levo T-Type
  • 2023 Turbo Levo Expert
  • 2023 Turbo Levo Expert T-Type
  • 2023 Turbo Levo Expert T-Type
  • 2022 LEVO ALLOY NB
  • 2022 LEVO COMP ALLOY
  • 2022 LEVO COMP ALLOY NB
  • 2022 LEVO COMP CARBON
  • 2022 LEVO COMP CARBON NB
  • 2022 LEVO EXPERT CARBON
  • 2022 LEVO EXPERT CARBON NB
  • 2022 LEVO LTD
  • 2022 LEVO LTD NB
  • 2022 LEVO PRO CARBON
  • 2022 LEVO PRO CARBON - WF
  • 2022 LEVO PRO CARBON NB
  • 2022 LEVO SW - WF
  • 2022 LEVO SW CARBON
  • 2022 LEVO SW CARBON NB
  • 2022 LEVO SW FRMSET
  • 2022 LEVO SW FRMSET NB
