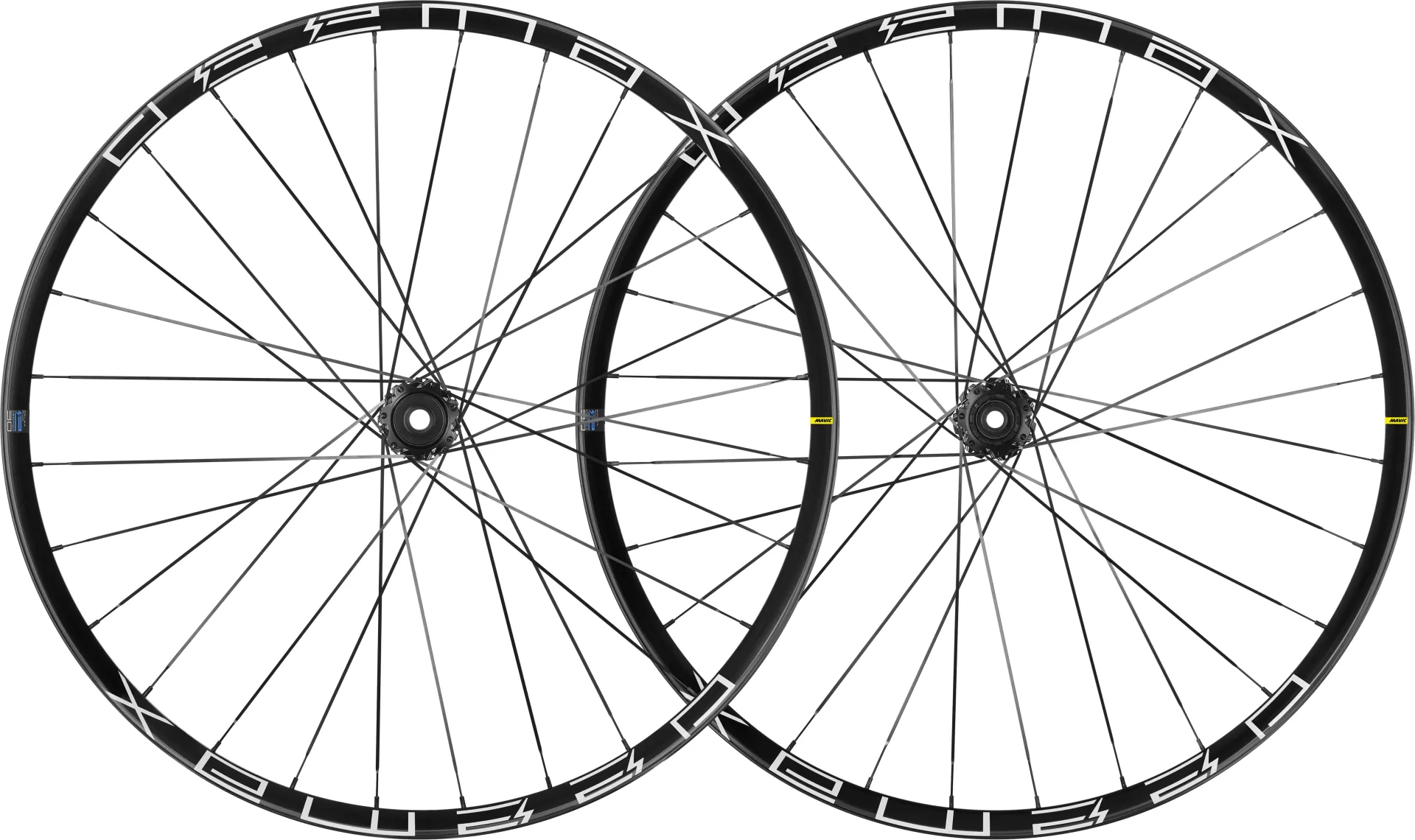

A brand new 30mm E-bike specific rim that’s super strong, tubeless ready and with PFP technology. The rim is welded and laced with 28 double butted spokes on downhill inspired hubs. All the E-Deemax reliability and toughness within reach.
Strong and durable
- Welded rim with Pinch Flat Protection for : Less risk of flat
- A super strong rim profile
- A perfectly sealed rim profile
E-Bike specific and reliable construction
- 28 wide double butted spokes
- Super reliable ID360 double ratchet freewheel system
- Hubs inspired by downhill practises
Tubeless ready technology
- A tubeless rim profile with tubeless tape make it easy to ride tubeless tyres for more traction and less risk of flat
The name E-Deemax has become a reference for E-Bike riders, this new E-Deemax 30 lives up to its name with many of the same features and technologies as higher range model, but at a far more attainable price. One of the key factors is their Pinch Flat Protection technology, a rim design with a wider contact surface at the top of sidewall, which significantly reduces the risk of tire cuts and punctures. The rim is welded for added reliability and features a 30mm internal width with a Tubeless Ready compatibility to allow you to run lower tyre pressure for better traction and control.
As with all Mavic's E-Deemax wheelsets, this new option is lab and field validated for a max total weight of 180Kg.
Mavic's Instant Drive 360 freewheel with a double ratchet system equips the rear hub and provide fast engagement and top-level reliability.
The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The E-Deemax 30 is available with 6-bolt or center lock brake rotors in 29” only and is compatible with a 15x110 front axle and 12x148 rear. The wheel is delivered with valves, replacement spokes and accessories.
Maxtal
- Light and strong Exclusive to Mavic, this specific aluminium alloy offers a higher strength to weight ratio than conventional 6106 alloy.
Pinch Flat Protection sidewall (minimizes the risk of tire cuts and punctures)
- 20% less risk of puncture with PFP
- An e-bike specific innovation to significantly reduce the risk of tire cuts and punctures
QRM Auto bearing preload technology
- Qualité de Roulements Mavic Auto their latest innovation
- Those cartridge bearings are of course double sealed with C3 internal clearance
- Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.
Instant Drive 360 freewheel technology
- The new Instant Drive 360 freewheel system is super light and fast to engage with only 9°
- A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
UST tubeless technology
- Traction and control Universal Standard for Tubeless
- Ready to ride tubeless system
- The UST concept improves traction, control and comfort whilst reducing inertia and flats.
