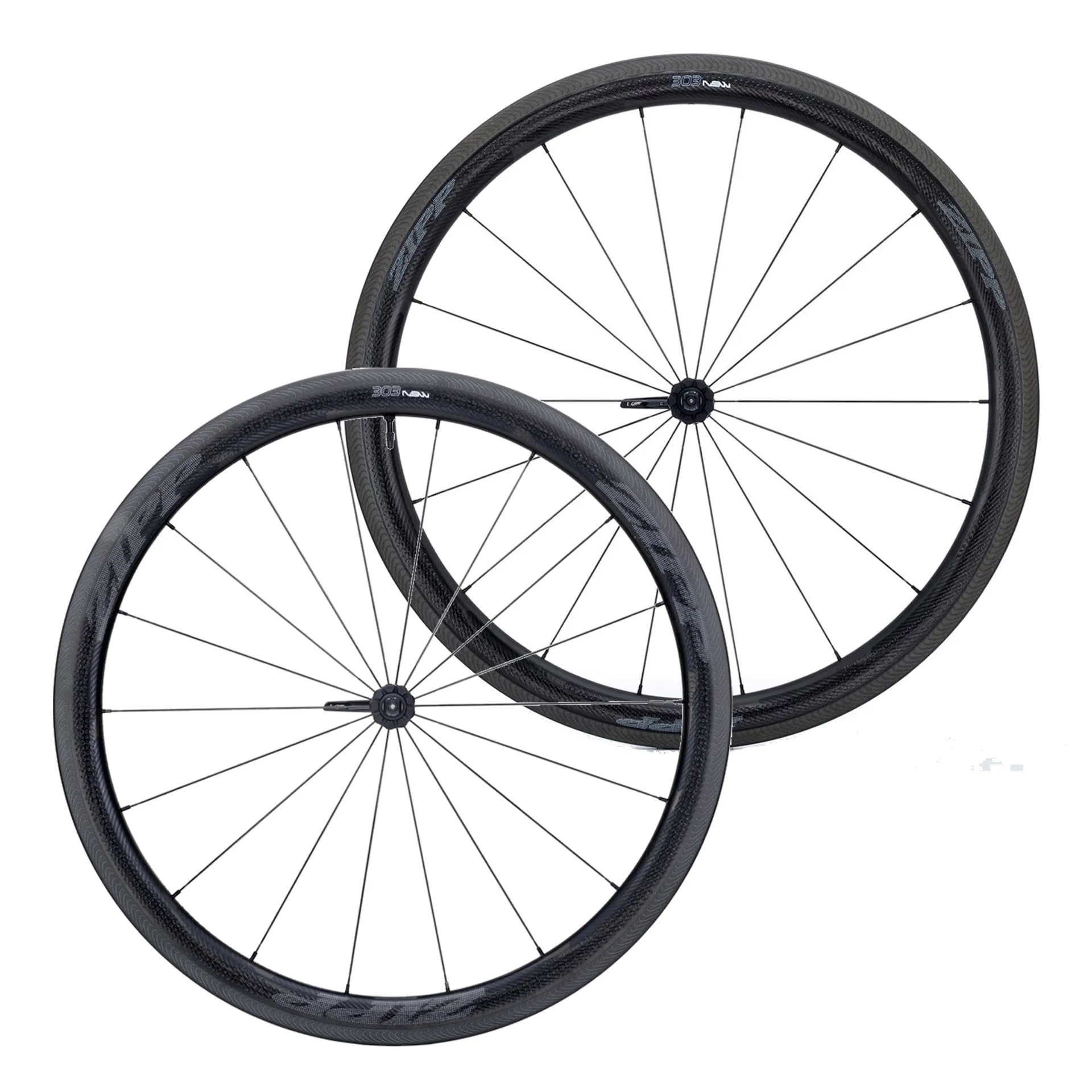

ZIPP 303 NSW Tubeless Rim Brake 2019 700c Front 18 Spokes Quick Release A1 and ZIPP 303 NSW Carbon Clincher Rear 24 Spokes Impress Graphics
Light enough to fly up climbs, tough enough to excel in the cobbled classics, and with the industry’s best available braking performance for the most technical descents, the 45mm deep 303 NSW is built for a singular purpose: To be fast, everywhere. But the 303 NSW is no ‘race day only’ wheelset to be tucked away in a wheel bag until a race number is pinned to the rider’s jersey. It’s built to take the abuse of everyday training rides. Zipp has achieved this reliability at a lighter weight with a revised carbon fibre layup developed through testing on the famed cobbles of the Arenberg Forest with the world’s fastest riders.
Things to Remember:
-
Tubeless
-
COGNITION™ hubset
-
Axial Clutch™ technology
-
ImPress™
-
ABLC SawTooth™
-
Showstopper™
-
New, faster, more stable rim profile - AeroBalance™
-
Handcrafted in the USA
Features and Benefits:
-
Entirely new 45mm rim profile, tubeless compatible for increased speed and better cornering, control and comfort
-
Cognition™ hubset with Axial Clutch™ technology provides reduced drag when coasting
-
ImPress™ graphics technology prints graphics directly onto the rim, for better air flow management, light weight and durability
-
ABLC Sawtooth dimple design helps manage air flow around the rim, and contributes to create a faster, more stable wheel
-
Industry leading Showstopper brake track: powerful and consistent braking, even on the wet.
Front Wheel Specifications:
-
Size (wheels): 700c
-
Rim construction: Carbon
-
Tyre compatibility: Clincher Tubeless Ready
-
Brake compatibility: Rim
-
Rim - inside width: 19mm
-
Rim profile: Symmetrical
-
Rim finish: UD fibre, Impress technology
-
Colour (Decal): Impress
-
Nipple material: Aluminium
-
Spoke type: CX-Ray - Black
-
Spoke count: 18
-
Spoke pattern: Radial
-
Driver body type: n/a
-
Axle type (Wheels): QR 100 Caps (dia. 19mm)
-
Bearings: Cartridge - Stainless Steel
-
Driver Mechanism: n/a
With the Cognition™ hubset’s Axial Clutch™ technology, ZIPP have reduced this drag by disengaging the ratchet mechanism when coasting. So you can approach corners at higher speeds, and ultimately, save time. A star-flanged straight-pull hubshell design on the rear hub distributes the load placed on the hub flange away from the bearings. They’ve also developed a unique scalloped edge hubshell design for the front hub. This scalloped design maintains the bearing bore diameter when high radial spoke tension is applied. That means you get bearings that quietly stay in place, roll faster, last longer, and provide a laterally stiffer hub.
ZIPP have employed their ImPress™ graphics technology, which prints graphics directly on the wheel, to help allow the dimples to do what they were designed to do – control vortex shedding, the rate at which air sheds off the wheel. Managing this is crucial to stability. Like the 404 and 808 NSW, ImPress graphics give the 303 NSW a distinctive stealthy look while keeping the rims as light as possible.
The new Sawtooth dimple design consists of 12 nodes that are precisely clocked to start aerodynamic shearing at a rate of 50hz at a rider speed of 20mph. Sawtooth accomplishes this by inducing small sheet vortices that shed at a low magnitude, but at a higher natural frequency, thus decreasing the laminar bubble effect on the aerodynamically shielded side of the rim’s profile to further reduce high yaw drag and improve crosswind stability. That crosswind stability imparts peace of mind in gusty wind conditions while saving watts that would have been expended while attempting to hold your line.
When it comes to braking, “good for a carbon rim” wasn’t good enough for NSW. ZIPP wanted braking performance that was better than aluminium rims and any other carbon rim, and they’ve achieved that goal. The industry leading silicon carbide Showstopper™ brake track delivers unmatched stopping power and modulation regardless of weather conditions or the length of the descent. With Showstopper braking performance, you’ll need to find another excuse not to ride on rainy days.
