frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
rear shock
FOX Float X2 Factory Series, Kashima Coated, 2-position lever, rebound adjust, 52.5x210mm

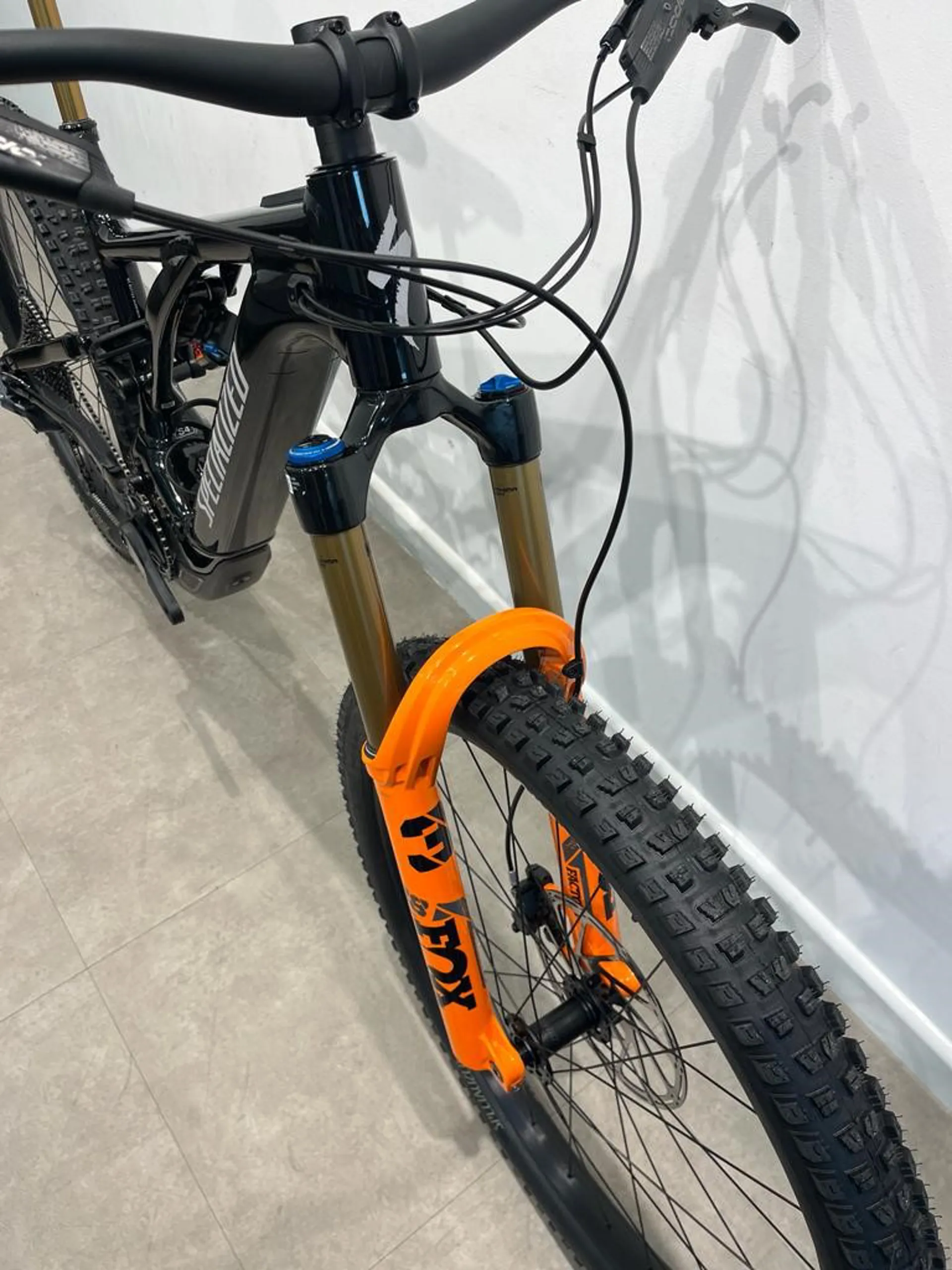

fork
Fox Float Factory 38 Grip2, Kashima Coated , S1: 160mm travel, S2-S6: 170mm travel
stem
Alloy Trail Stem, 35mm bar bore
handlebars
Alloy, 35mm diameter, 780mm width, 8-degree backsweep, 6-degree upsweep
tape
Specialized Trail Grips

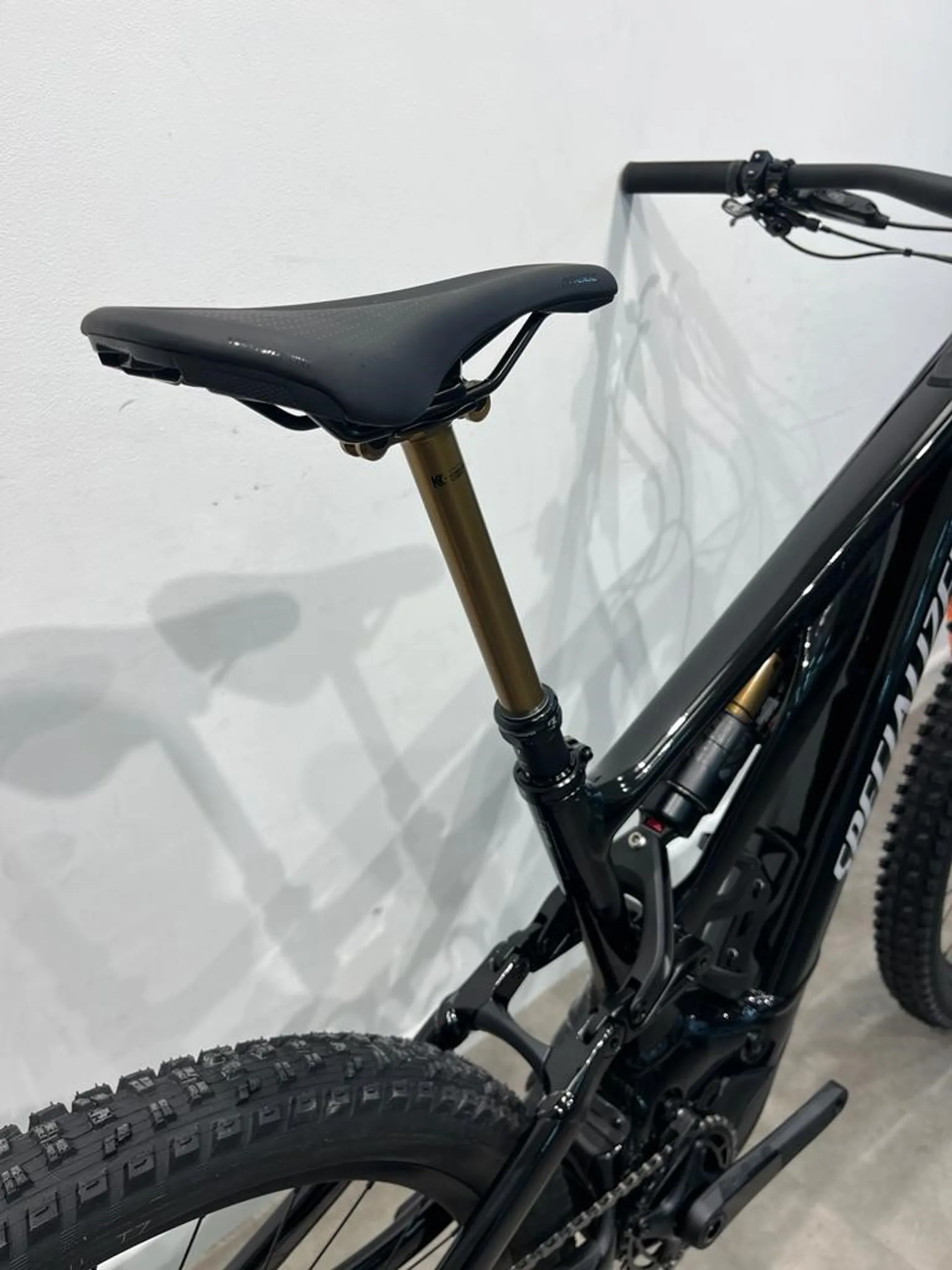

saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
seatpost
Fox Transfer Factory Dropper Seatpost, Kashima Coated, two-bolt head, bottom mount cable routing, Fox Transfer Lever, 30.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5/S6: 175mm
front brake
SRAM Code R, 4-piston caliper, hydraulic disc, S1-S3: 200mm, S4-S6: 220mm
rear brake
SRAM Code R, 4-piston caliper, hydraulic disc, 200mm
rear derailleur
SRAM GX Eagle, 12-speed
shift levers
SRAM GX Eagle, 12-speed
cassette
SRAM XG-1275, 12-speed, 10-52t
chain
SRAM NX Eagle, 12-speed
crankset
Praxis forged M30, custom offset, 160mm
chainrings
SRAM X-Sync Eagle, 104 BCD, 32T, steel
rims
Specialized 29, hookless alloy, 30mm inner width, tubeless ready
front hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
rear hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
spokes
DT Swiss Industry
front tyre
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
rear tyre
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
inner tubes
Standard, Presta Valve
seat binder
Alloy, 38.6
motor
Specialized Turbo Full Power System 2.2 Motor
UI/Remote
Specialized MasterMind TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote
battery
Specialized M3-700, Integrated battery, 700Wh
charger
Custom charger, 42V4A w/ Rosenberger plug
wiring harness
Custom Specialized wiring harness
- As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
