The Specialized Demo Race Downhill Mountain Bike Frameset is built on the same frame that achieved instant success in its debut World Cup season.
The Specialized Demo Race Downhill Mountain Bike Frameset is built on the same frame that achieved instant success in its debut World Cup season.
Specialized

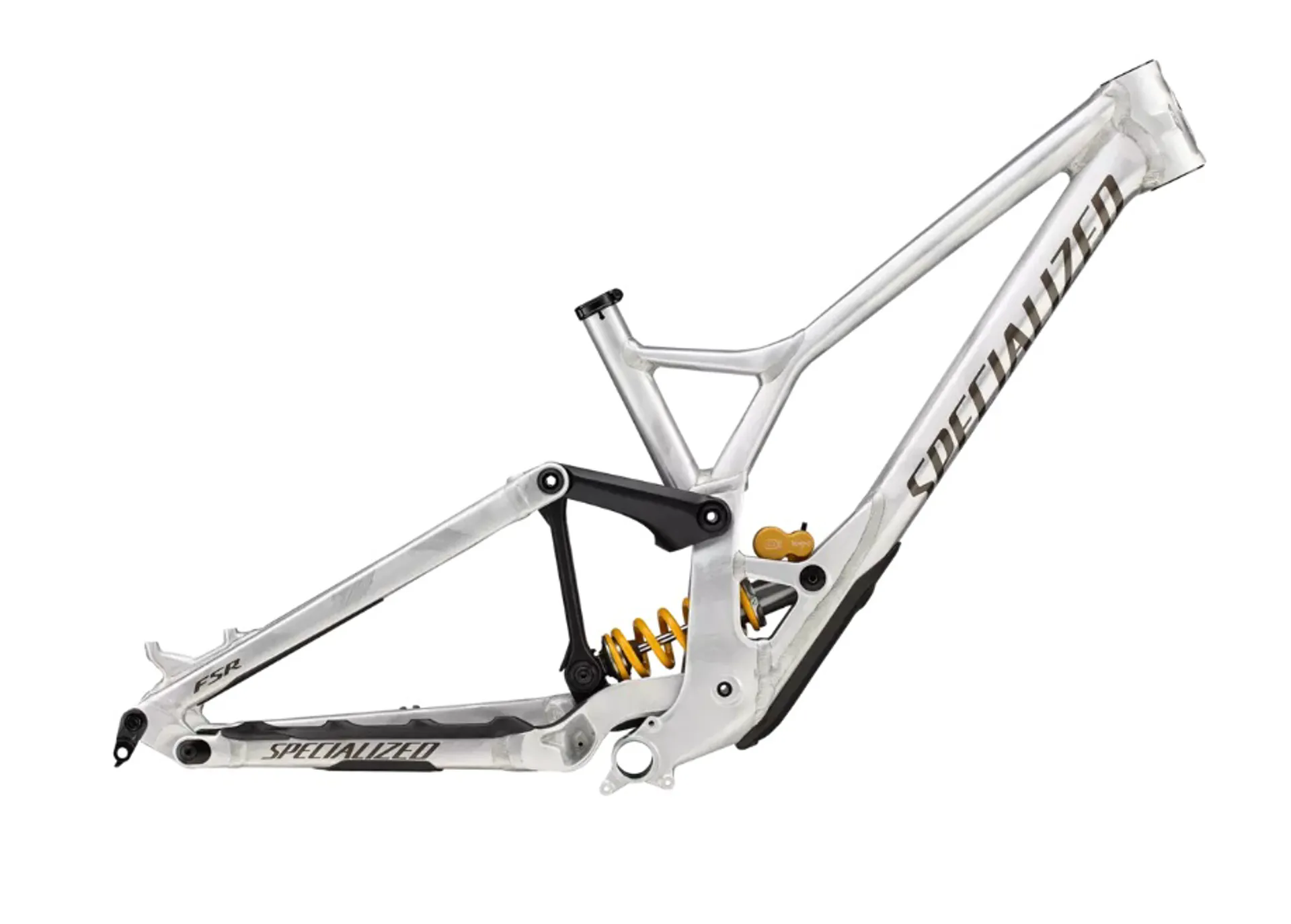

2025 Specialized Demo Race Mountain Bike Frameset - Gloss Flake Silver

£2,400.00
I'm a Pre-launch Product. Find out more
Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2025 Specialized Demo Race Mountain Bike Frameset - Gloss Flake Silver

Season:2025

Brand:Specialized

Code:42213865429255

The Specialized Demo Race Downhill Mountain Bike Frameset is built on the same frame that achieved instant success in its debut World Cup season. This frameset is designed with 27.5/29-inch rear wheel compatibility, offering the perfect balance of speed, traction, and maneuverability while providing exceptional versatility for downhill racing.

Equipped with the Öhlins TTX22M.2 coil shock, this frameset delivers top-tier suspension performance. Fine-tune your ride with adjustable low-speed compression and rebound, while the Trunnion mount adds durability with increased bushing overlap. Simply add your trusted race components, and you're ready to chase podium finishes.

The Demo Race M5 alloy frame is optimised for the best of both worlds: a 29-inch front wheel for superior traction and a 27.5-inch rear wheel for enhanced maneuverability. The adjustable rear end lets you switch to a full 29-inch setup to suit different terrains, ensuring the chainstay length and bottom-bracket height remain perfectly dialed for any wheel configuration.

Technical Information
  • Frame
    M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel
  • Rear Shock
    Öhlins TTX22M.2 Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225x75
  • Seat Binder
    Alloy, 34.9mm
  • Saddle
    Body Geometry Henge DH, hollow titanium rails, 130mm
  • Seatpost
    Thomson, alloy, straight, 12-degree clamp
As with any product, specification is subject to change without prior notification. You are advised to confirm current specification before buying. Please note that this bike does not come with pedals.
Sizing Information
Size in ft5'2" - 5'9"5'5" - 6'0"5'8" - 6'4"
Size in cm158 - 175cm165 - 183cm173 - 193cm
Equivalent to Bike SizeSML
Bike SizeS2S3S4

DEMO (STYLE SPECIFIC-SIZING) MY21 SIZING GUIDE

S-Sizing is based on what matters; rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be more nimble, thanks to their shorter reach and front-center measurement, while bigger S-Sizes deliver more stability and a roomier ride.

  • SIZE DOWN FOR MORE MANEUVERABILITY
  • SIZE UP FOR MORE STABILITY

GEOMETRY

SizeS2S3S4
BB Drop25mm25mm25mm
BB Height350mm350mm350mm
B-B Height (27.5 mid)345mm345mm345mm
B-B Height (29 mid)355mm355mm355mm
Chainstay Length (mid)443mm443mm443mm
Chain-Stay Length (27.5)438mm438mm438mm
Chain-Stay Length (29)448mm448mm448mm
Fork Rake/Offset56mm56mm56mm
Front Centre801mm821mm841mm
Front-Center (27.5 mid)801mm821mm841mm
Front-Center (29 mid)801mm821mm841mm
Head Tube Angle62.8°62.8°62.8°
Head-Tube Angle (27.5 mid)62.5°62.5°62.5°
Head-Tube Angle (29 mid)63.2°63.2°63.2°
Head Tube Length105mm105mm105mm
Reach426mm446mm466mm
Reach (27.5 mid)423mm443mm463mm
Reach (29 mid)430mm450mm470mm
Seat Tube Angle78.2°76.8°76.8°
Seat-Tube Angle (27.5 mid)77.8°76.4°76.4°
Seat-Tube Angle (29 mid)78.5°77.1°77.1°
Seat Tube Length394mm420mm420mm
Stack632mm632mm632mm
Stack (27.5 mid)635mm635mm635mm
Stack (29 mid)629mm629mm629mm
Trail130mm130mm130mm
Trail (27.5 mid)132mm132mm132mm
Trail (29 mid)127mm127mm127mm
Wheelbase (mid)1244mm1264mm1284mm
Wheelbase (27.5)1239mm1259mm1279mm
Wheelbase (29)1249mm1269mm1289mm
